Cold Shrink Breakout
Suitable for 3 Core Cable
Features :
Key Specification :
|
Test items |
Test Method |
Test Requirements |
|
Tensile Strength |
ASTM D 638 |
7MPa min. |
|
Ultimate Elongation |
ASTM D 638 |
600% min. |
|
Tear Strength |
ASTM D 638 |
20KN/m min. |
|
Density |
ASTM D 792 |
1.2g/cm3 |

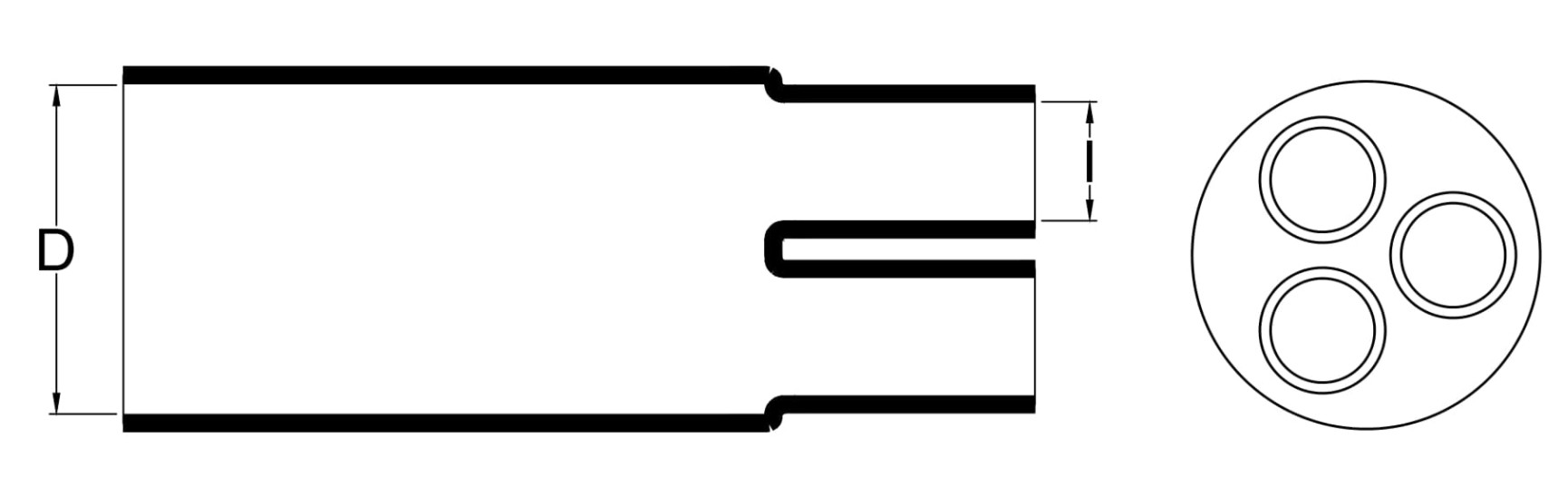

Selection Table :
|
Size |
D(mm) |
I(mm) |
||
|
As supplied |
As Fully recovered |
As supplied |
As Fully recovered |
|
|
(mm) |
a(Min.) |
b(Max.) |
a(Min.) |
b(Max.) |
|
ACB-75/38 |
75 |
38 |
31 |
14 |
|
ACB-92/43 |
92 |
43 |
36 |
16 |
|
ACB-105/53 |
105 |
53 |
41 |
19 |
|
ACB-120/62 |
120 |
62 |
48 |
23 |
|
ACB-160/68 |
160 |
68 |
67 |
27 |
|
ACB-200/85 |
200 |
85 |
80 |
32 |
* We reserve the right to make any technical changes or modify in content.
