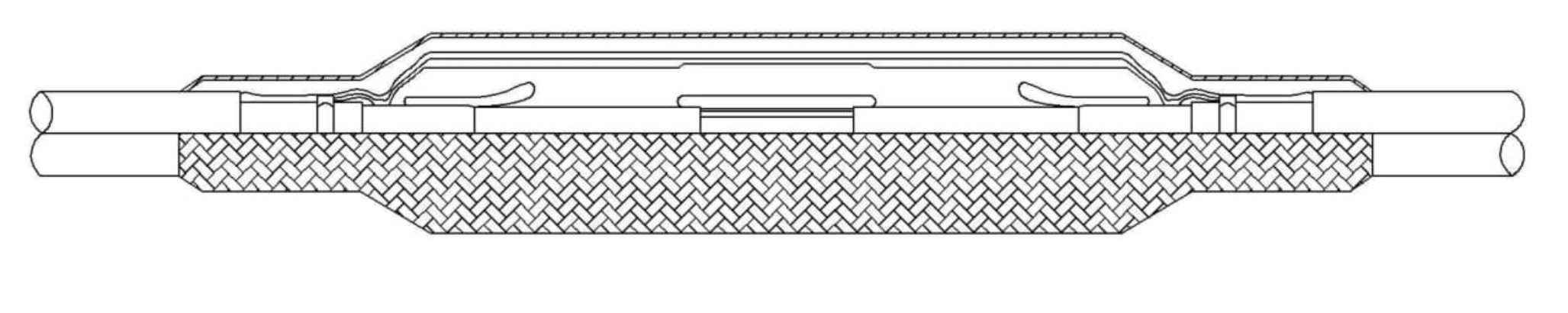

Cold Shrink Joint
Suitable for
XLPE or EPR insulated
1 or 3 Core cables with Al or Cu conductor up to 40.5kV
Features :
Key Specification :
|
Standard |
IEC60502 |
||||
|
Voltage Class |
Upto & For 12kV |
Upto & For 17.5kV |
Upto & For 24kV |
Upto & For 36kV |
Upto & For 40.5kV |
|
Partial Discharge Test at Ambient Temperature |
10kV<10pC |
15kV<10pC |
20kV<10pC |
30kV<10pC |
45kV<10pC |
|
AC Withstand Voltage Test |
27kV 5min |
39kV 5min |
54kV 5min |
81kV 5min |
117kV 5min |
|
Impulse Voltage Withstand |
+75kV each polarity 10times |
+95kV each polarity 10times |
+125kV each polarity 10times |
+170kV each polarity 10times |
+200kV each polarity 10times |
Selection Table :
|
Cable Size mm2 |
Product Code For 17.5 kV |
Product Code For 24 kV |
|
25-50 |
ACJ-1751 |
ACJ-2451 |
|
70-150 |
ACJ-1752 |
ACJ-2452 |
|
185-300 |
ACJ-1753 |
ACJ-2453 |
|
400-500 |
ACJ-1754 |
ACJ-2454 |
|
Cable Size mm2 |
Product Code For 36 kV |
|
35-95 |
ACJ-3651 |
|
120-185 |
ACJ-3652 |
|
240-300 |
ACJ-3653 |
|
400 |
ACJ-3654 |
* We reserve the right to make any technical changes or modify in content.
