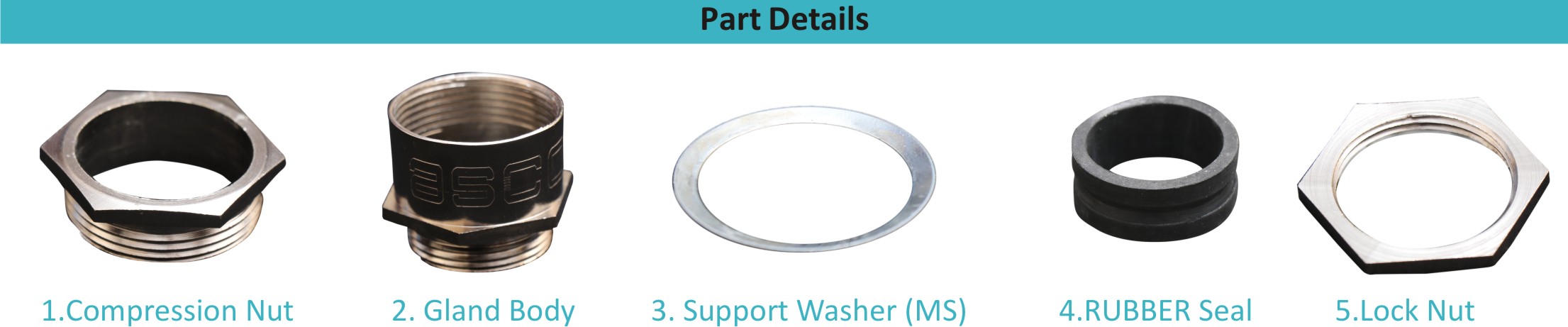

Single Compression Cable Glands
These indoor and outdoor cable glands are for use with all types of armoured & un-armoured cables, providing environmental seal for outer sheath of cable. The Cable Glands also provides mechanical cable retention and electrical continuity via armour wire termination.
TECHNICAL DATA |
||
Type |
SINGLE COMPRESSION |
|
Design Specification |
IS 12943-1990 |
|
Threads: |
E.T.,NPT & METRIC |
|
Gland Material |
Electro Nickel Plated Brass (general) |
|
Seal Material |
RUBBER |
|
Accessories (optional) |
Shroud, Earth Tag, Blank plugs,, Adaptor/Reducer, Entry Thread Seal |
|
Cable Gland Selection Table: (All dimensions except thread size are in M.M.)
Note: Special requirement will also be accepted
Gland Size |
D 1 |
D 2 |
D 3 |
ENTRY “A” (THREAD) |
LENGTH “B” |
A/F. |
|
3/8” |
12.70 |
10.40 |
12.70 |
5/8” ET |
6.50 |
18.00 |
|
1/2” |
15.40 |
12.45 |
12.70 |
5/8” ET |
7.00 |
19.80 |
|
5/8” |
15.40 |
12.20 |
15.60 |
3/4" ET |
7.00 |
19.80 |
|
3/4" |
17.80 |
14.65 |
15.60 |
3/4" ET |
7.50 |
22.20 |
|
7/8” |
20.70 |
18.00 |
15.60 |
3/4" ET |
7.50 |
24.50 |
|
1” |
23.60 |
19.00 |
21.60 |
1” ET |
7.00 |
28.00 |
|
1.1/8” |
28.00 |
24.00 |
24.60 |
1.1/8” ET |
8.00 |
33.00 |
|
1.1/4” |
31.30 |
27.50 |
27.70 |
1.1/4” ET |
8.50 |
36.00 |
|
1.3/8” |
35.80 |
31.50 |
29.70 |
1.3/8” ET |
9.00 |
40.50 |
|
1.1/2” |
38.30 |
33.00 |
33.50 |
1.1/2” ET |
9.50 |
44.50 |
|
1.3/4” |
44.30 |
39.00 |
40.25 |
1.3/4” ET |
10.00 |
50.00 |
|
2” |
51.80 |
46.75 |
45.50 |
2” ET |
10.00 |
57.00 |
|
2.1/4” |
57.80 |
49.80 |
52.30 |
2.1/4” ET |
11.00 |
63.00 |
|
2.1/2” |
62.70 |
55.75 |
58.40 |
2.1/2” ET |
12.00 |
70.00 |
|
2.3/4” |
69.00 |
61.00 |
63.00 |
2.3/4” ET |
12.00 |
75.00 |
|
3” |
75.70 |
65.50 |
70.50 |
3” ET |
12.00 |
83.00 |
|
3.1/4” |
82.00 |
74.00 |
76.50 |
3.1/4” ET |
12.00 |
89.00 |
|
3.1/2” |
85.00 |
78.00 |
83.00 |
3.1/2” ET |
12.00 |
95.00 |
|
4” |
100.00 |
90.00 |
92.00 |
4” ET |
12.00 |
108.00 |
Double Compression Cable Glands
These indoor and outdoor cable glands are for use with all types of armoured & un-armoured cables, providing environmental seal for inner & outer sheath of cable. The Cable Glands also provides mechanical cable retention and electrical continuity via armour wire termination. A detachable armour cone and anyway universal clamping ring arrangement allows the cable to be easily disconnected from the equipment, for maintenance and change out etc.
|
TECHNICAL DATA |
|
|
Type |
DOUBLE COMPRESSION |
|
Design Specification |
BS 6121:Part:1989, IS 2148 |
|
Threads: |
E.T.,NPT & METRIC |
|
Operating Temperature |
-30°C to 90°C |
|
Protection Class |
IP 65 (IS 12063) |
|
Gland Material |
Electro Nickel Plated Brass (general) Material option: Stainless steel, Mild steel & Aluminium Plating option: Chrome, Tin, Zinc |
|
Seal Material |
Natural Rubber/ PVC |
|
Accessories (optional) |
Shroud, Earth Tag, Blank plugs,, Adaptor/Reducer, Entry Thread Seal |
Cable Gland Selection Table: (All dimensions except thread size are in M.M.)
Note: Special requirement will also be accepted.
|
GLAND SIZE (Cat. No.) |
D1 |
D2 |
THREAD |
ETL |
A/F. |
|
3/8”(10mm) |
9.50 |
8.00 |
1/2"ET |
24.00 |
17.75 |
|
1/2”(12mm) |
15.00 |
12.00 |
5/8”ET |
24.00 |
22.00 |
|
5/8”(16mm) |
16.00 |
12.00 |
3/4"ET |
24.00 |
23.00 |
|
3/4"(19mm) |
17.50 |
14.00 |
3/4"ET |
24.00 |
24.00 |
|
7/8”(22mm) |
19.00 |
14.00 |
3/4"ET |
24.00 |
25.50 |
|
1”(25mm) |
23.00 |
18.50 |
1”ET |
24.00 |
31.50 |
|
1.1/8”(28mm) |
26.00 |
21.50 |
1.1/8”ET |
24.00 |
34.50 |
|
1.1/4”(32mm) |
31.00 |
27.00 |
1.1/4”ET |
24.00 |
41.00 |
|
1.3/8”(35mm) |
35.00 |
29.00 |
1.3/8”ET |
24.00 |
45.50 |
|
1.1/2”(38mm) |
38.00 |
32.00 |
1.1/2”ET |
24.00 |
47.50 |
|
1.3/4”(45mm) |
46.00 |
38.00 |
1.3/4”ET |
24.00 |
56.50 |
|
2”(50mm) |
49.00 |
44.00 |
2”ET |
24.00 |
61.00 |
|
2.1/4”(57mm) |
57.00 |
48.00 |
2.1/4”ET |
24.00 |
67.00 |
|
2.1/2”(63mm) |
63.00 |
56.00 |
2.1/2”ET |
24.00 |
74.50 |
|
2.3/4”(70mm) |
68.00 |
63.00 |
2.3/4”ET |
24.00 |
82.50 |
|
3”(75mm) |
76.00 |
68.00 |
3”ET |
24.00 |
92.50 |
|
3.1/4”(82mm) |
78.00 |
70.00 |
3.1/4”ET |
24.00 |
92.50 |
|
3.1/2”(88mm) |
85.00 |
77.00 |
3.1/2”ET |
24.00 |
102.00 |
|
4”(100mm) |
96.00 |
86.00 |
4”ET |
24.00 |
115.00 |
* We reserve the right to make any technical changes or modify in content..
