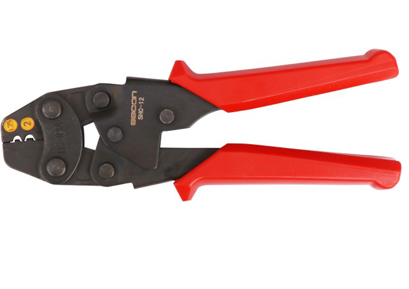

Hand Crimping Tool
Model - SHC-12
| Crimping Capacity Length Weight |
: |
1.25 - 2.5mm2 approx. 170mm approx. 0.25kg |
Hand Crimping Tool
Model - SHC-13
| Crimping Type Crimping Capacity Length Weight |
: : : : |
Hexagon Crimping 1.0 - 4mm2 approx. 230mm approx. 0.60kg |

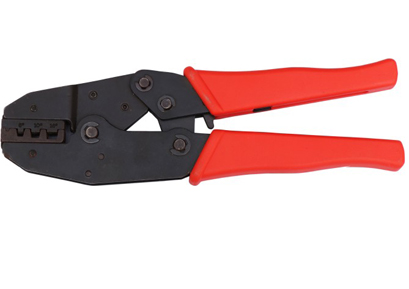

Hand Crimping Tool
Model - SHC-14
| Crimping Capacity Length Weight |
: : : |
0.25-6mm2 approx.175mm approx.0.35kg |

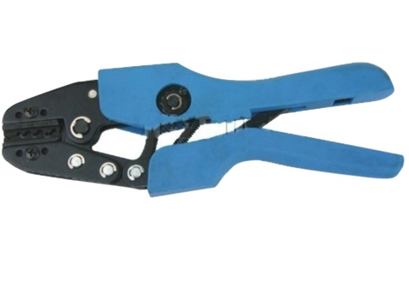

Hand Crimping Tool
Model - SHC-15
| Crimping Capacity Length Weight |
: : : |
1.5 - 6mm2 approx. 230mm approx. 0.60kg |
Hand Crimping Tool
Model - SHP-106
| Crimping Type Crimping Capacity Length Weight |
: : : : |
Hexagon Crimping 6 - 16mm2 approx. 225mm approx. 0.61kg |

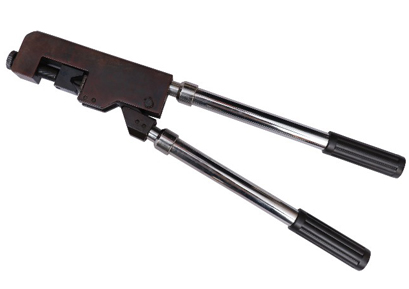

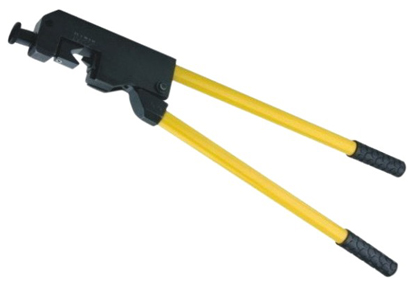

Mechanical Tool(Die Less)
Model - SHC-120
| Capacity Type Crimping Capacity Weight |
: : : |
Indent crimping 10 - 120mm2 3.2 kgs. |
Mechanical Tool(Die Less)
Model - SKH-230
| Crimping Type Crimping Capacity Weight |
: : : |
Indent crimping 10 - 240mm2 3.3 kg. |

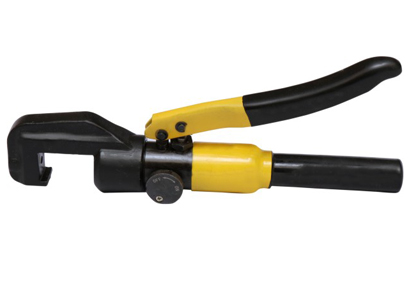

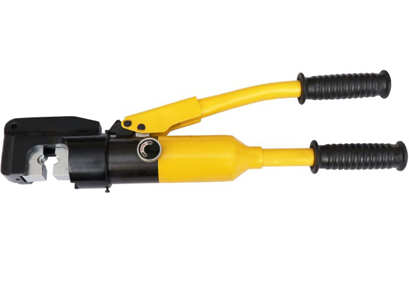

Hydraulic Tool
Model - SCT-70
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
4 - 70mm2 8T hexagon crimping 10mm approx. 2.8 kgs. 4, 6, 10, 16, 25, 35 50, 70mm2 |

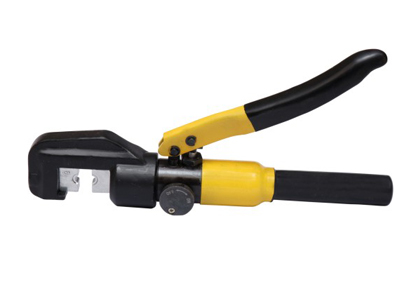

Hydraulic Tool
Model - SCT-120A
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
10 - 120mm2 12T hexagon crimping 14mm approx.4.2 kgs. 10, 16, 25, 35, 50, 70, 95, 120mm2 |

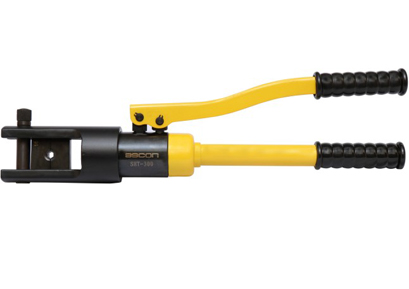

Hydraulic Tool
Model - SHT-300
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
16 - 300mm2 16T hexagon crimping 22mm approx.6.3 kgs. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
Hydraulic Tool(Safety System)
Model - SCT-300
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
16-300mm2 16T hexagon crimping 22mm approx. 6.8kgs. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |

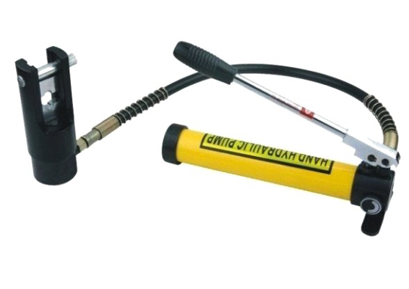

| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
16 - 300mm2 20T hexagon crimping 22mm approx. 11kgs. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
* We reserve the right to make any technical changes or modify in content.
