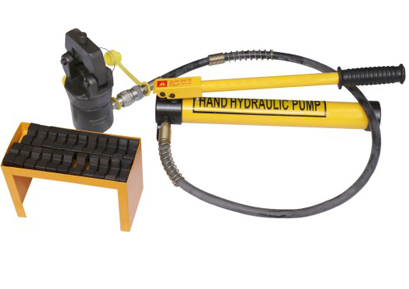

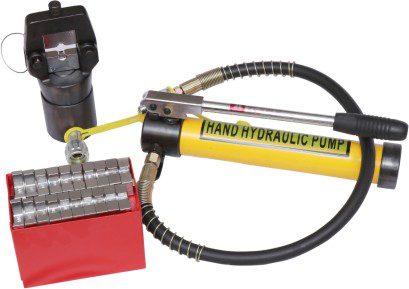

Hydraulic Tool(Jack & Pump)
Model - SJT - 300C
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
16 - 300mm2 20T Hexagon Crimping 22mm approx. 11.5Kgs. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
Hydraulic Tool(Jack & Pump)
Model - SJT - 400C
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
16 - 400mm2 22T Hexagon Crimping 22mm approx. 14.5kgs. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |

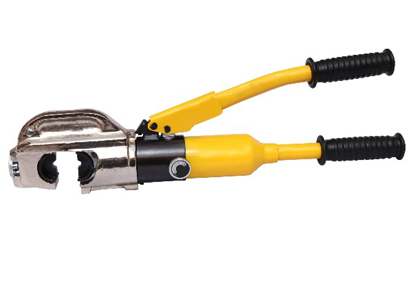

Hydraulic Tool(Jack & Pump)
Model - SCT - 400
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
50 - 400mm2 20T Hexagon Crimping 25mm approx.8.3Kg. 50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |

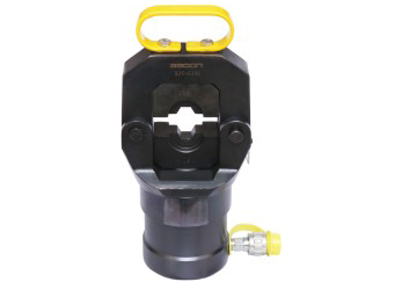

Hydraulic Jack
Model - SJT - 630A
| Crimping Capacity Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
150 - 630mm2 30T Hexagon Crimping 25mm approx. 28Kg. 150, 185, 240, 300, 400, 500, 630mm2 |

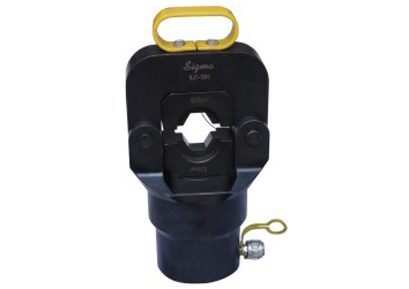

Hydraulic Jack
Model - SJT - 1000
| Crimping Range Crimping Force Crimping Type Stroke Weight Crimping Dies |
: : : : : : |
400 - 1000mm2 55T Hexagon Crimping 28mm approx. 46Kg. 400, 500, 630, 800, 1000mm2 |

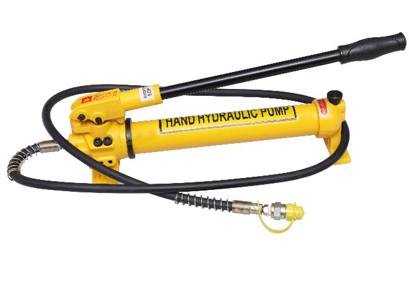

Hydraulic Pump
Model - SCP - 700
| Type Max output Pressure Capacity of Oil Weight |
: : : : : |
Hand Low - 20kg/cm2 High-700kg/cm2 900cc approx. 9kg. |

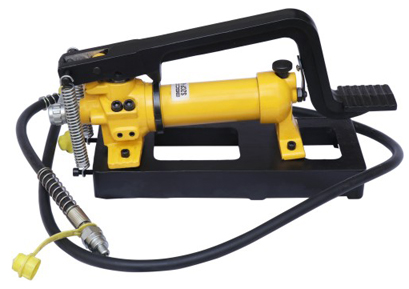

Hydraulic Pump
Model - SCFP - 800
Type |
: : : : |
Foot Low-20kg/cm2 High-700kg/cm2 850cc approx. 8kg. |

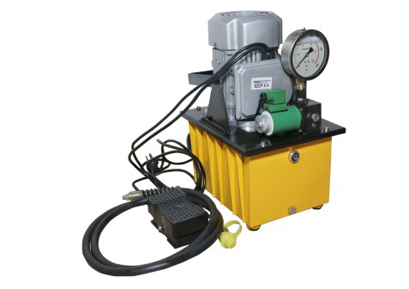

Hydraulic Pump(Power Pack)
Model - SZCB6 - 5
| Rated Output Motor Voltage Rated Pressure Capacity Weight |
: : : : : |
0.75kw 220V/380V High - 63MPa Low 2.5MPa High - 0.8L/min Low - 5L/Min. Approx. 30kg. |

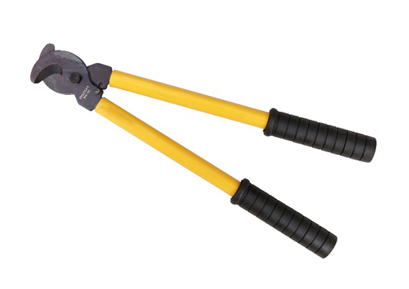

Cable Cutter
Model - SHC - 20
| Cutting Capacity Weight |
: : |
120mm2 max for Al. Conductor
95mm2 for Cu. Conductor approx.0.57 Kg. |

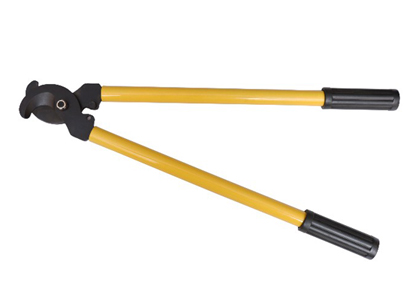

Cable Cutter
Model - SHC - 25
| Cutting Capacity Weight |
: : |
240mm2 max for Al. Conductor
185mm2 for Cu. Conductor approx.1.43 Kg. |

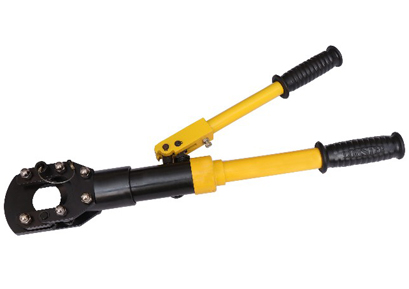

Cable Cutter
Model - SCC - 32
| Cutting Capacity Crimping Force Weight |
: : : |
¢ 40mm max(For Telephone Cable) ¢ 32mm max (For armoured Cu./ AI cable) 8T approx. 5.00 Kgs. |
Cable Cutter
Model - SCC - 45
| Cutting Capacity Crimping Force Weight |
: : : |
¢ 50mm max(For Telephone Cable) ¢ 45mm max (For armoured Cu./AI cable) 12T approx. 7.00 Kgs. |
* We reserve the right to make any technical changes or modify in content.
