Cold Shrink Insulated Tubing
Features :
Key Specification :
|
Test items |
Test Method |
Test Requirements |
|
Tensile Strength |
ASTM 0638 |
7MPa min. |
|
Ultimate Elongation |
ASTM 0638 |
600% min. |
|
Tear Strength |
ASTM 0638 |
20KN/m min. |
|
Density |
ASTM D 792 |
1.2g/cm3 |
Selection Table :

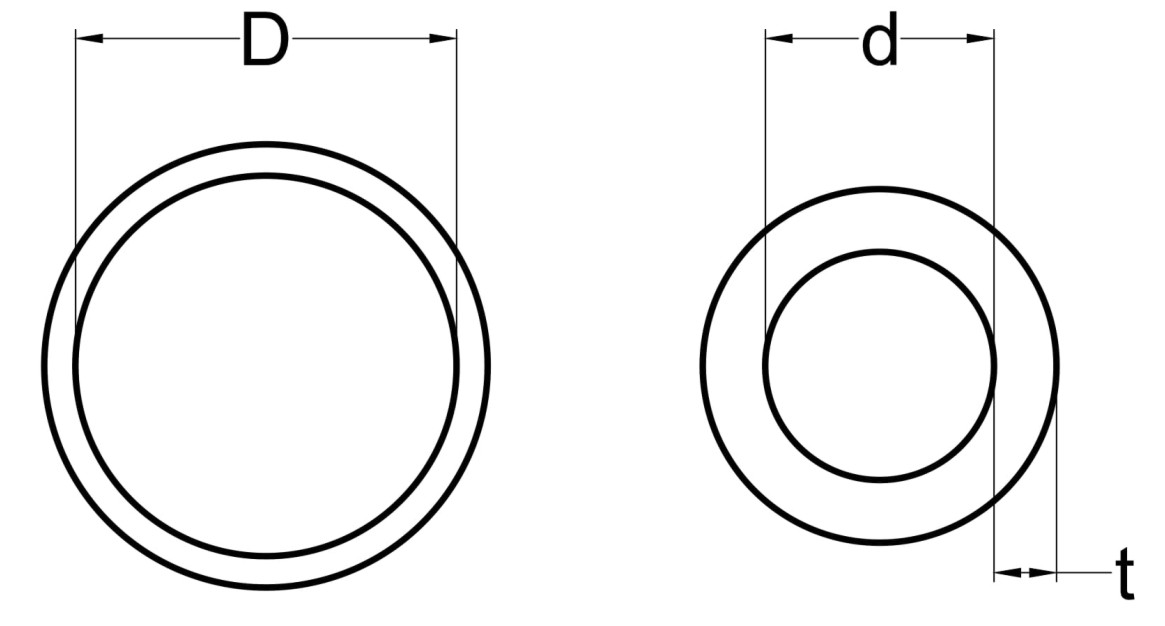

Size(mm) |
As Supplied (mm) |
After recovered(mm) |
|
|
Inner Diameter (D*) |
Inner Diameter (d*) |
Wall Thickness(t*) |
|
|
ACST-28/10 |
28 |
10 |
2.5 |
|
ACST-31/15 |
31 |
15 |
2.2 |
|
ACST-36/17 |
36 |
17 |
2.2 |
|
ACST-41/22 |
41 |
22 |
2.2 |
|
ACST-48/27 |
48 |
27 |
2.2 |
|
ACST-54/27 |
54 |
27 |
2.5 |
|
ACST-67/28 |
67 |
28 |
3.0 |
|
ACST-80/32 |
80 |
32 |
3.0 |
|
ACST-92/32 |
92 |
32 |
3.0 |
|
ACST-105/36 |
105 |
36 |
3.0 |
* We reserve the right to make any technical changes or modify in content.
