Din- 46228 (Part-4)
(Cord Terminal) to DIN-46228 (Part-4)
Material: E-Copper
Finish: Electro Tin Plated
.png)
.png)
|

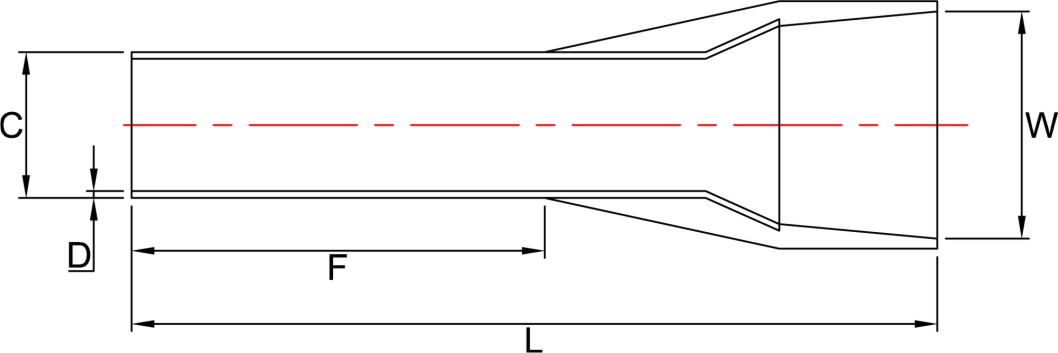

Dimensions |
|||||||
|
Cable Size mm2 |
Type
|
Colour
|
F |
L |
W |
D |
C |
|
0.5 |
E0506 |
White |
6.0 |
12.0 |
2.6 |
0.15 |
1.0 |
|
E0508 |
8.0 |
14.0 |
|||||
|
E0510 |
10.0 |
16.0 |
|||||
|
0.75 |
E7506 |
Grey |
6.0 |
12.3 |
2.8 |
0.15 |
1.2 |
|
E7508 |
8.0 |
14.3 |
|||||
|
E7510 |
10.0 |
16.3 |
|||||
|
1 |
E1006 |
Red |
6.0 |
12.3 |
3.0 |
0.15 |
1.4 |
|
E1008 |
8.0 |
14.3 |
|||||
|
E1010 |
10.0 |
16.3 |
|||||
|
1.5 |
E1508 |
Black |
8.0 |
14.3 |
3.5 |
0.15 |
1.7 |
|
E1510 |
10.0 |
16.3 |
|||||
|
2.5 |
E2508 |
Blue |
8.0 |
15.4 |
4.0 |
0.15 |
2.3 |
|
E2510 |
10.0 |
19.4 |
|||||
|
4 |
E4009 |
Grey |
10.0 |
17.4 |
4.5 |
0.2 |
2.8 |
|
E4012 |
12.0 |
19.4 |
|||||
|
6 |
E6012 |
Yellow |
12.0 |
20.5 |
6.0 |
0.2 |
3.5 |
|
10 |
E10-12 |
Red |
12.0 |
22.8 |
7.5 |
0.2 |
4.5 |
|
16 |
E16-12 |
Blue |
12.0 |
22.2 |
8.7 |
0.2 |
5.8 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
