Al. Lug Sector Shape
Sector Shape Type
Material: Aluminium
Finish: Natural / Passivated Aluminium
|

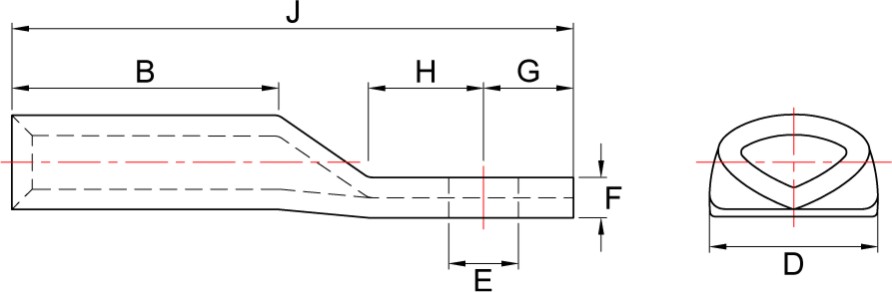

Dimensions in mm |
||||||||
|
Cable Size mm2 |
Hole Size |
Barrel Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
E |
D |
F |
B |
H |
G |
J |
||
|
25 |
8.4 |
15.2 |
4.1 |
25 |
17 |
12 |
65 |
AAL3-8-25 |
|
10.4 |
15.2 |
4.1 |
25 |
17 |
12 |
65 |
AAL3-10-25 |
|
|
35 |
8.4 |
17.6 |
4.4 |
30 |
17 |
12 |
68 |
AAL3-8-35 |
|
10.4 |
17.6 |
4.4 |
30 |
17 |
12 |
68 |
AAL3-10-35 |
|
|
50 |
8.4 |
20.3 |
4.5 |
32 |
17 |
12 |
68 |
AAL3-8-50 |
|
10.4 |
20.3 |
4.5 |
32 |
17 |
12 |
71 |
AAL3-10-50 |
|
|
70 |
10.4 |
23.2 |
5 |
35.5 |
17 |
12 |
10 |
AAL3-10-70 |
|
12.5 |
23.2 |
5 |
35.5 |
17 |
12 |
76 |
AAL3-12-70 |
|
|
95 |
10.4 |
27.7 |
5.7 |
39 |
17 |
12 |
82 |
AAL3-10-95 |
|
12.5 |
27.7 |
5.7 |
39 |
17 |
12 |
82 |
AAL3-12-95 |
|
|
120 |
10.4 |
31 |
6.5 |
44 |
17 |
12 |
88 |
AAL3-10-120 |
|
12.5 |
31 |
6.5 |
44 |
17 |
12 |
88 |
AAL3-12-120 |
|
|
150 |
12.4 |
34.7 |
7.2 |
47.5 |
20.5 |
16 |
100 |
AAL3-12-150 |
|
16.5 |
34.7 |
7.2 |
47.5 |
20.5 |
16 |
100 |
AAL3-16-150 |
|
|
185 |
12.4 |
34.7 |
7.2 |
47.5 |
20.5 |
16 |
106 |
AAL3-12-185 |
|
16.5 |
34.7 |
7.2 |
47.5 |
20.5 |
16 |
106 |
AAL3-16-185 |
|
|
240 |
20.5 |
43.6 |
5.7 |
55.5 |
22 |
18 |
116 |
AAL3-20-240 |
|
300 |
20.5 |
49.2 |
9.7 |
60.5 |
25 |
20 |
128.5 |
AAL3-20-300 |
Recommended to use suitable crimping tools to perfect Joint.
