Round Pin type (With Insulation Sleeve)
With Metal Insulating Sleeve (Double Grip)
Material: Copper Strip to IS 1897:1983
.png)
.png)
|

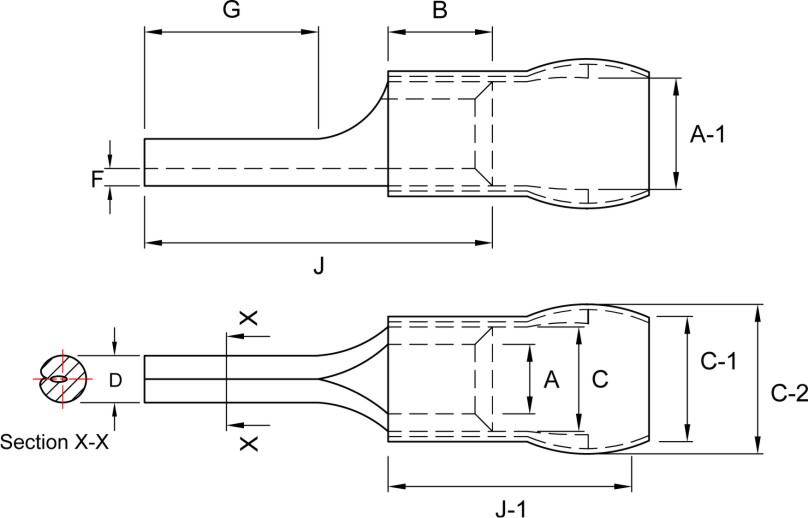

Dimensions in mm |
||||||||||||
|
Cable Size mm2 |
A |
C |
D |
F |
B |
G |
J |
J-1 |
A-1 |
C-1 |
C-2 |
ASCON CAT. NO. |
|
1.5 |
1.6 |
3.2 |
1.9 |
0.8 |
5 |
10 |
17 |
10 |
3.6 |
4.8 |
5.4 |
ACP-26 |
|
2.5 |
2.3 |
3.9 |
1.9 |
0.8 |
5 |
10 |
17 |
10 |
4.4 |
5.4 |
6.0 |
ACP-27 |
|
4 |
2.9 |
4.9 |
2.7 |
1.0 |
6 |
10 |
20 |
15 |
6.4 |
7.2 |
8.6 |
ACP-29 |
|
6 |
3.6 |
5.6 |
2.7 |
1.0 |
6 |
10 |
20 |
15 |
6.4 |
7.2 |
8.6 |
ACP-31 |
|
6 |
4.0 |
6.0 |
2.7 |
1.0 |
6 |
10 |
20 |
15 |
6.4 |
7.2 |
8.6 |
ACP-32 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
Recommended to use suitable crimping tools to perfect Joint.
