Flat Pin type (Without Insulation)
Non Insulated
Material: Copper Strip to IS 1897:1983
Surface Finish: Electro Tin Plated
.png)
.png)
|

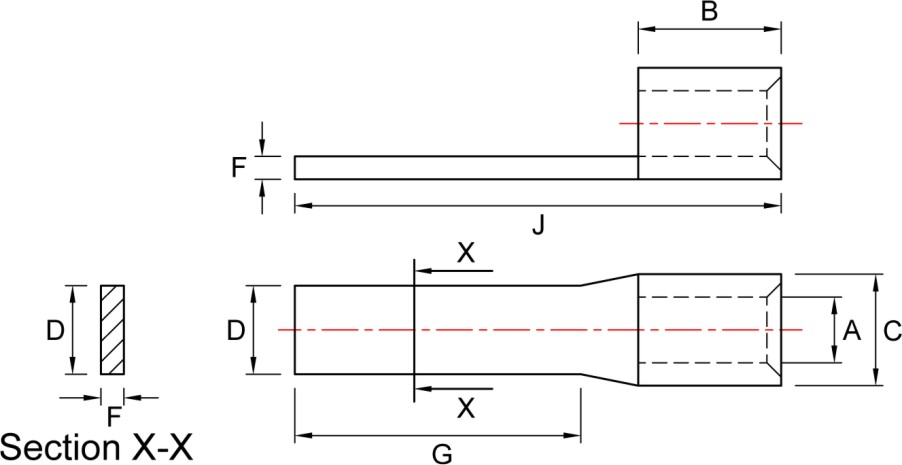

Dimensions in mm |
||||||||
|
Cable Size mm2 |
A |
C |
D |
F |
B |
G |
J |
ASCON CAT. NO. |
|
1.5 |
1.6 |
3.2 |
3.1 |
0.8 |
5 |
10 |
17 |
ACP-35 |
|
2.5 |
2.3 |
3.9 |
3.1 |
0.8 |
5 |
10 |
17 |
ACP-2 |
|
4 |
3.6 |
5.6 |
5.1 |
1.0 |
6 |
10 |
20 |
ACP-4 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
