Al Lug Heavy duty (DIN 46329) Standard
Heavy Duty Long Barrel
Standard-DIN- 46329
Material: AI. Electrolytic Grade IS 5082
 Standard.png)
 Standard.png)
|

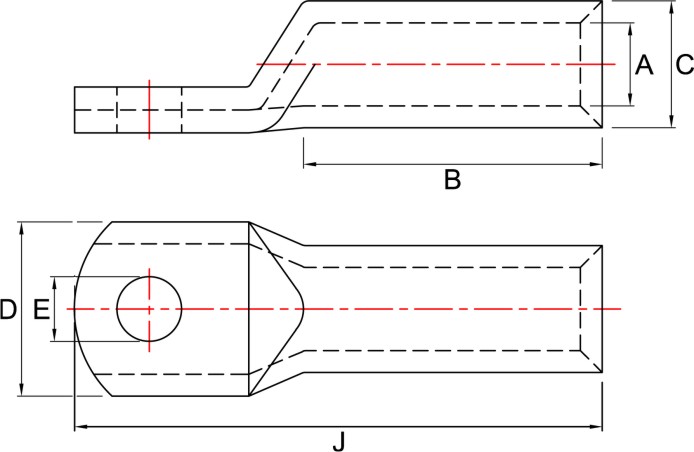

Dimensions in mm |
|||||||
|
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Barrel Length |
Total Length |
ASCON CAT. NO. |
|
E |
A |
C |
D |
B |
J |
||
|
25
|
8.4 |
6.8 |
12 |
20 |
30 |
50 |
AADL-25-8 |
|
10.5 |
6.8 |
12 |
25 |
30 |
50 |
AADL-25-10 |
|
|
13.0 |
6.8 |
12 |
25 |
30 |
50 |
AADL-25-13 |
|
|
35
|
8.4 |
8.0 |
14 |
25 |
42 |
62 |
AADL-35-8 |
|
10.5 |
8.0 |
14 |
25 |
42 |
62 |
AADL-35-10 |
|
|
13.0 |
8.0 |
14 |
25 |
42 |
62 |
AADL-35-13 |
|
|
50
|
8.4 |
9.8 |
16 |
25 |
42 |
62 |
AADL-50-8 |
|
10.5 |
9.8 |
16 |
25 |
42 |
62 |
AADL-50-10 |
|
|
13.0 |
9.8 |
16 |
25 |
42 |
62 |
AADL-50-13 |
|
|
70
|
8.4 |
11.2 |
18 |
25 |
52 |
72 |
AADL-70-8 |
|
10.5 |
11.2 |
18 |
25 |
52 |
72 |
AADL-70-10 |
|
|
13.0 |
11.2 |
18 |
25 |
52 |
72 |
AADL-70-13 |
|
|
95
|
10.5 |
13.2 |
22 |
25 |
56 |
75 |
AADL-95-10 |
|
13.0 |
13.2 |
22 |
25 |
56 |
75 |
AADL-95-13 |
|
|
17.0 |
13.2 |
22 |
25 |
56 |
75 |
AADL-95-17 |
|
|
120
|
10.5 |
14.7 |
23 |
30 |
56 |
80 |
AADL-120-10 |
|
13.0 |
14.7 |
23 |
30 |
56 |
80 |
AADL-120-13 |
|
|
17.0 |
14.7 |
23 |
30 |
56 |
80 |
AADL-120-17 |
|
|
150 |
10.5 |
16.3 |
25 |
30 |
60 |
90 |
AADL-150-10 |
|
13.0 |
16.3 |
25 |
30 |
60 |
90 |
AADL-150-13 |
|
|
17.0 |
16.3 |
25 |
30 |
60 |
90 |
AADL-150-17 |
|
|
21.0 |
16.3 |
25 |
30 |
60 |
90 |
AADL-150-21 |
|
|
185
|
10.5 |
18.3 |
28 |
30 |
60 |
91 |
AADL-185-10 |
|
13.0 |
18.3 |
28 |
30 |
60 |
91 |
AADL-185-13 |
|
|
17.0 |
18.3 |
28 |
30 |
60 |
91 |
AADL-185-17 |
|
|
21.0 |
18.3 |
28 |
30 |
60 |
91 |
AADL-185-21 |
|
|
240
|
10.5 |
21.0 |
32 |
38 |
70 |
103 |
AADL-240-10 |
|
13.0 |
21.0 |
32 |
38 |
70 |
103 |
AADL-240-13 |
|
|
17.0 |
21.0 |
32 |
38 |
70 |
103 |
AADL-240-17 |
|
|
21.0 |
21.0 |
32 |
38 |
70 |
103 |
AADL-240-21 |
|
|
300
|
13.0 |
23.3 |
34 |
38 |
70 |
103 |
AADL-300-13 |
|
17.0 |
23.3 |
34 |
38 |
70 |
103 |
AADL-300-17 |
|
|
21.0 |
23.3 |
34 |
38 |
70 |
103 |
AADL-300-21 |
|
|
400
|
13.0 |
26.0 |
38 |
38 |
73 |
116 |
AADL-400-13 |
|
17.0 |
26.0 |
38 |
38 |
73 |
116 |
AADL-400-17 |
|
|
21.0 |
26.0 |
38 |
38 |
73 |
116 |
AADL-400-21 |
|
|
500
|
13.0 |
29.0 |
44 |
44 |
79 |
122 |
AADL-500-13 |
|
17.0 |
29.0 |
44 |
44 |
79 |
122 |
AADL-500-17 |
|
|
21.0 |
29.0 |
44 |
44 |
79 |
122 |
AADL-500-21 |
|
Note: On demand - Barrel can be capped & refilled with Anti Corrosive Electrical Joint Component to avoid oxidation on the conductor.
Recommended to use suitable crimping tools to perfect Joint.
