Copper “T†Type Connectors
Material : Copper Tube to BS1977
Surface : Tin Plated
|

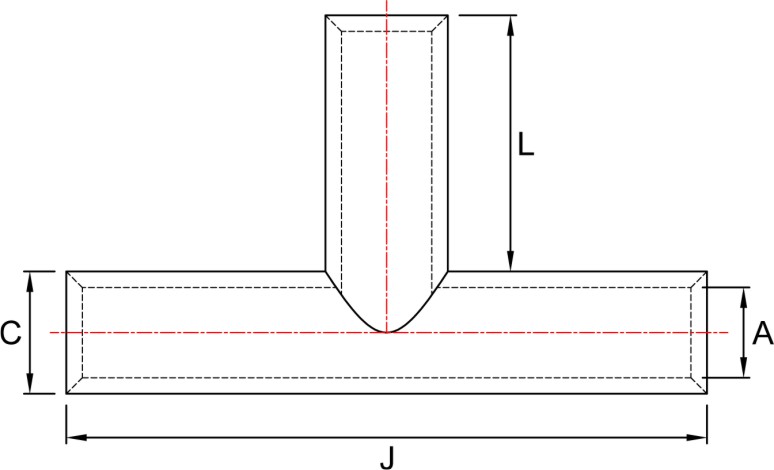

Dimensions in mm
|
|||||
|
Cable Size mm2 |
A |
C |
J |
L |
ASCON CAT. NO. |
|
1.5 |
1.8 |
3.3 |
30 |
12 |
ASTC-1.5 |
|
2.5 |
2.3 |
4.2 |
30 |
12 |
ASTC-2.5 |
|
4 |
3 |
5 |
30 |
12 |
ASTC-4 |
|
6 |
4 |
6 |
35 |
14 |
ASTC-6 |
|
10 |
4.5 |
7 |
35 |
14 |
ASTC-10 |
|
16 |
5.5 |
8.5 |
50 |
21 |
ASTC-16 |
|
25 |
7 |
10 |
55 |
23 |
ASTC-25 |
|
35 |
8.5 |
12 |
70 |
30 |
ASTC-35 |
|
50 |
10 |
14 |
80 |
34 |
ASTC-50 |
|
70 |
12 |
16.5 |
85 |
35 |
ASTC-70 |
|
95 |
13.5 |
18 |
90 |
36 |
ASTC-95 |
|
120 |
15 |
19.5 |
95 |
38 |
ASTC-120 |
|
150 |
16.5 |
21 |
110 |
44 |
ASTC-150 |
|
185 |
19 |
24 |
115 |
45 |
ASTC-185 |
|
240 |
21 |
26 |
130 |
52 |
ASTC-240 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
Recommended to use suitable crimping tools to perfect Joint.
