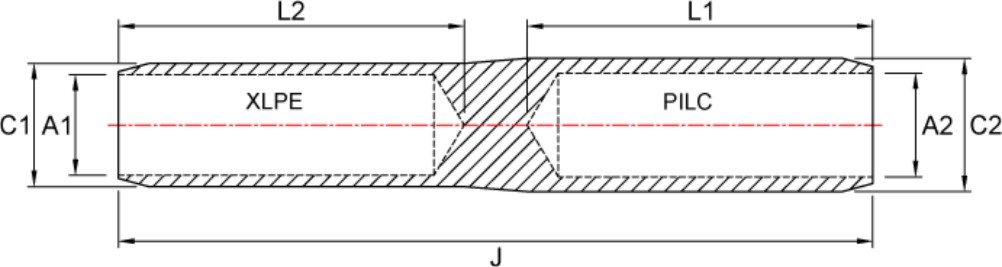

Copper Transition Barrier Type Ferrule PILC to XLPE
Material: Copper BS 1977:1976
|
Dimensions in mm |
||||||||
|
Cable Size mm2 |
A1 |
C1 |
A2 |
C2 |
L1 |
L2 |
J |
ASCON CAT. NO. |
|
50 |
9.2 |
11.2 |
9.5 |
12.4 |
35 |
35 |
80 |
ASCTF-50 |
|
70 |
11.6 |
13.8 |
11.2 |
14.7 |
40 |
40 |
90 |
ASCTF-70 |
|
95 |
12.8 |
15.6 |
13.5 |
17.4 |
40 |
40 |
90 |
ASCTF-95 |
|
120 |
14.8 |
17.8 |
15 |
19.4 |
50 |
50 |
110 |
ASCTF-120 |
|
150 |
16 |
19.6 |
16.5 |
21.2 |
55 |
55 |
120 |
ASCTF-150 |
|
185 |
18 |
22 |
18.5 |
23.5 |
55 |
55 |
120 |
ASCTF-185 |
|
240 |
22 |
26 |
21 |
26.5 |
60 |
60 |
130 |
ASCTF-240 |
|
300 |
24 |
28.7 |
23.5 |
30 |
60 |
60 |
130 |
ASCTF-300 |
|
400 |
28 |
33.2 |
26.8 |
34.8 |
65 |
65 |
140 |
ASCTF-400 |
|
500 |
30 |
36 |
30 |
39 |
70 |
70 |
150 |
ASCTF-500 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
Recommended to use suitable crimping tools to perfect Joint.
