Copper Butt Connectors
Materials : E Copper Tube BS 1977/ IS 191
|

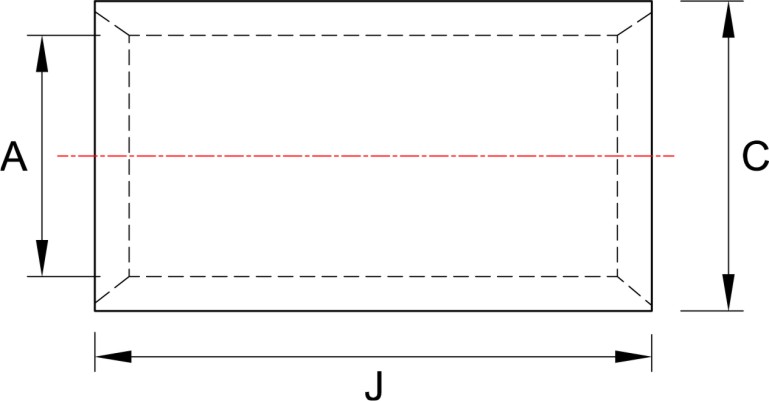

Dimensions in mm |
||||
|
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
ASCON CAT.NO. |
|
A |
C |
J |
||
|
1.5 |
1.8 |
3.7 |
7 |
ABC1.5 |
|
2.5 |
2.4 |
4 |
7 |
ABC2.5 |
|
4 |
3.1 |
4.8 |
7 |
ABC4 |
|
6 |
3.8 |
5.5 |
7 |
ABC6 |
|
10 |
4.5 |
6.2 |
10.5 |
ABC10 |
|
16 |
5.3 |
7.1 |
11.5 |
ABC16 |
|
25 |
6.8 |
8.8 |
13 |
ABC25 |
|
35 |
8.2 |
10.6 |
14 |
ABC35 |
|
50 |
9.5 |
12.4 |
16 |
ABC50 |
|
70 |
11.2 |
14.7 |
18 |
ABC70 |
|
95 |
13.5 |
17.4 |
19 |
ABC95 |
|
120 |
15 |
19.4 |
20.5 |
ABC120 |
|
150 |
16.5 |
21.2 |
23 |
ABC150 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
