Copper Soldering Type copper Weak Back Ferrule
Material: E-Copper Tube to IS – 191 (Part-v)
|

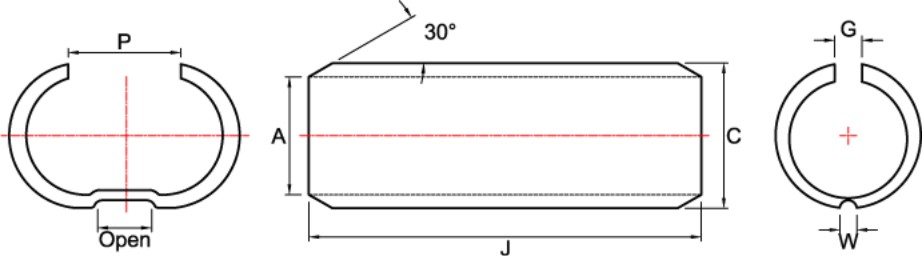

Dimensions in mm |
|||||||
|
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
Total Length |
Barrel Open Area |
Back Slot |
ASCON CAT.NO. |
|
A |
C |
G |
J |
P |
W |
||
|
6 |
3.0 |
4.6 |
2 |
20 |
3 |
- |
AWB-279 |
|
10 |
4.4 |
6.0 |
2 |
25 |
4 |
- |
AWB-280 |
|
16 |
5.5 |
7.5 |
2 |
25 |
5 |
1.5 |
AWB-281 |
|
25 |
7.0 |
9.0 |
2 |
30 |
7 |
1.5 |
AWB-282 |
|
35 |
8.0 |
10.4 |
2 |
35 |
8 |
1.5 |
AWB-283 |
|
50 |
9.5 |
11.9 |
2 |
40 |
9 |
1.5 |
AWB-284 |
|
70 |
12.0 |
14.8 |
3 |
45 |
12 |
3.0 |
AWB-285 |
|
95 |
13.5 |
16.3 |
3 |
50 |
13 |
3.0 |
AWB-286 |
|
120 |
15.5 |
18.7 |
4 |
55 |
15 |
3.0 |
AWB-287 |
|
150 |
17.0 |
20.6 |
4 |
60 |
16 |
3.0 |
AWB-288 |
|
185 |
18.5 |
22.9 |
4 |
65 |
18 |
5.0 |
AWB-289 |
|
225 |
20.5 |
24.9 |
5 |
75 |
20 |
5.0 |
AWB-290 |
|
240 |
22.0 |
26.4 |
5 |
80 |
21 |
5.0 |
AWB-291 |
|
300 |
24.0 |
29.6 |
5 |
85 |
23 |
5.0 |
AWB-292 |
|
400 |
28.5 |
34.7 |
7 |
95 |
27 |
5.0 |
AWB-293 |
|
500 |
30.5 |
37.5 |
7 |
105 |
30 |
5.0 |
AWB-294 |
|
625 |
34.5 |
42.5 |
8 |
115 |
33 |
5.0 |
AWB-295 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
