Copper Insulated Connector
For Copper/Aluminium Conductors
|

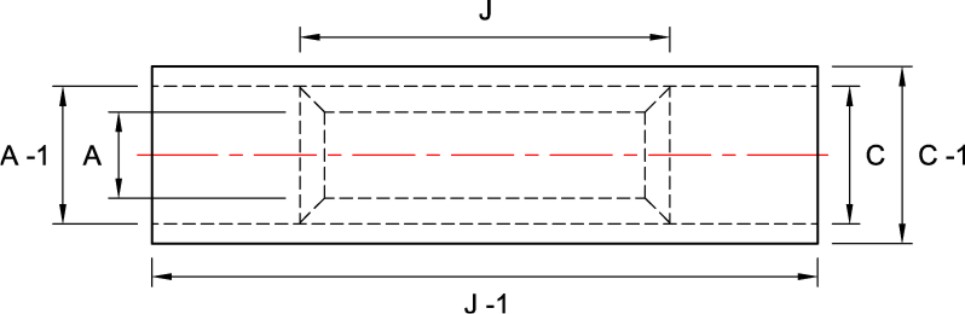

Dimensions in mm |
|||||||
|
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
Sleeve ID |
Sleeve OD |
Sleeve Length |
ASCON CAT.NO. |
|
A |
C |
J |
A1 |
C1 |
J1 |
||
|
1.5 |
1.6 |
3.2 |
7.0 |
3.3 |
4.9 |
17.0 |
ASII-473 |
|
2.5 |
2.4 |
4.0 |
7.0 |
4.1 |
5.5 |
17.0 |
ASII-474 |
|
4-6 |
3.5 |
5.5 |
7.0 |
5.6 |
7.2 |
21.0 |
ASII-475 |
|
1.5 |
1.6 |
3.2 |
15.0 |
3.3 |
4.9 |
25.0 |
ASII-463 |
|
2.5 |
2.4 |
4.0 |
15.0 |
4.1 |
5.5 |
25.0 |
ASII-464 |
|
4-6 |
3.5 |
5.5 |
15.0 |
5.6 |
7.2 |
27.0 |
ASII-465 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
