Copper Insulated In-Line Connector
Material: E-Copper
Finish: Electro Tin Plated (Connectors are fully PVC insulated)
Size: 1.5 2.5 4 6
Color: Red Blue Yellow
|

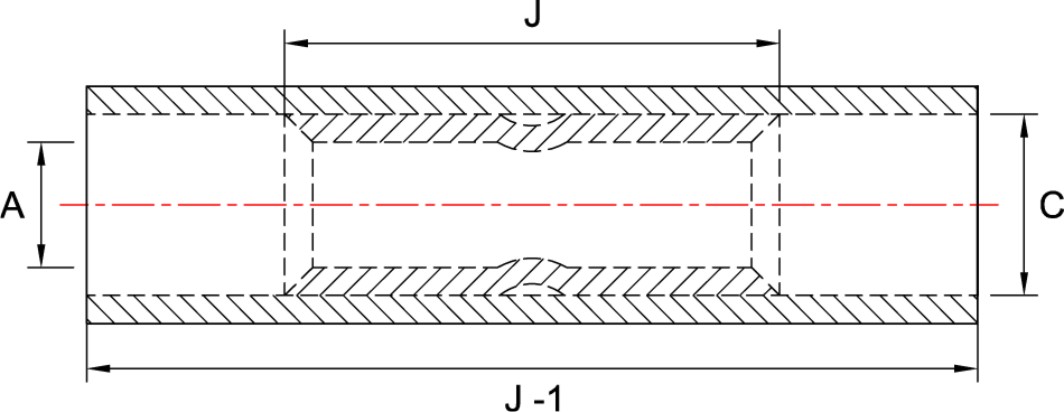

Dimensions in mm |
|||||
|
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
Sleeve length |
ASCON CAT.NO. |
|
A |
C |
J |
J - 1 |
||
|
1.5 |
1.8 |
3.7 |
12.00 |
20.00 |
ASIC - 1.5 |
|
2.5 |
2.4 |
4.0 |
15.00 |
25.00 |
ASIC - 2.5 |
|
4.0 |
3.1 |
4.8 |
15.00 |
25.00 |
ASIC - 4 |
|
6.0 |
3.8 |
5.5 |
15.00 |
27.00 |
ASIC - 6 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
