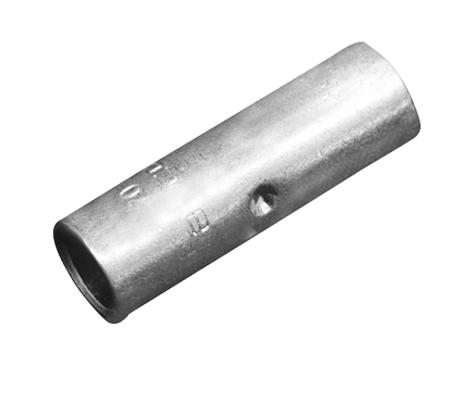

Copper Ferrule Heavy Duty Short Barrel Type
Heavy Duty – Short Barrel with Cable Stopper

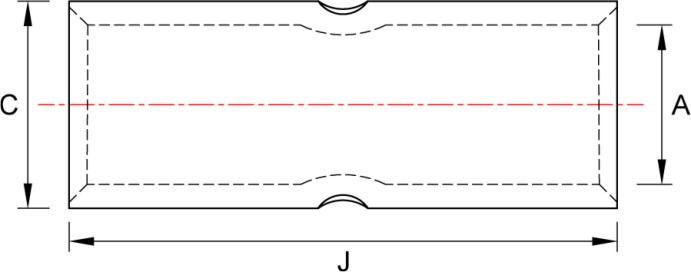

Dimensions in mm |
||||
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
ASCON CAT.NO. |
|
A |
C |
J |
||
|
25 |
6.8 |
8.8 |
32 |
ACBH-24 |
|
35 |
8.2 |
10.6 |
36 |
ACBH-25 |
|
50 |
9.5 |
12.4 |
40 |
ACBH-26 |
|
70 |
11.2 |
14.7 |
40 |
ACBH-51 |
|
95 |
13.5 |
17.4 |
45 |
ACBH-52 |
|
120 |
15.0 |
19.4 |
45 |
ACBH-53 |
|
150 |
16.5 |
21.2 |
55 |
ACBH-54 |
|
185 |
18.5 |
23.5 |
65 |
ACBH-55 |
|
240 |
21.0 |
26.5 |
80 |
ACBH-56 |
|
300 |
23.5 |
30.0 |
85 |
ACBH-57 |
|
400 |
26.8 |
34.8 |
90 |
ACBH-58 |
|
500 |
30.0 |
39.0 |
100 |
ACBH-59 |
|
630 |
35.0 |
45.0 |
110 |
ACBH-61 |
|
800 |
39.0 |
50.6 |
150 |
ACBH-62 |
|
1000 |
43.0 |
56.2 |
170 |
ACBH-63 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
