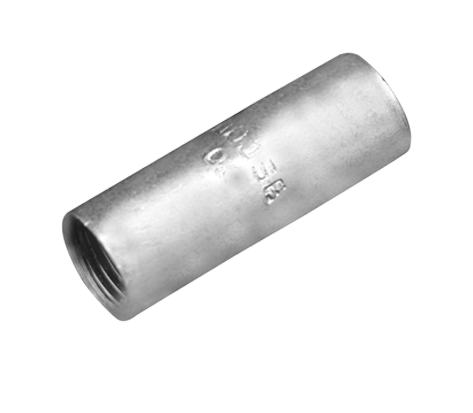

Copper Ferrule Medium Duty Long Barrel Type
Medium Duty-Long Barrel
|

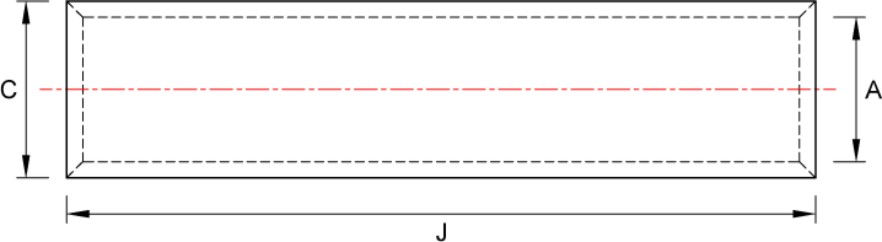

Dimensions in mm |
||||
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
ASCON CAT.NO. |
|
A |
C |
J |
||
|
1.5 |
1.8 |
3.7 |
23 |
ACBL-453 |
|
2.5 |
2.4 |
4.0 |
23 |
ACBL-454 |
|
4 |
3.1 |
4.8 |
23 |
ACBL-3 |
|
6 |
3.8 |
5.5 |
23 |
ACBL-4 |
|
10 |
4.4 |
6.2 |
30 |
ACBL-460 |
|
16 |
5.3 |
7.1 |
30 |
ACBL-6 |
|
25 |
7.0 |
9.0 |
38 |
ACBL-7 |
|
35 |
8.0 |
10.0 |
45 |
ACBL-8 |
|
50 |
9.2 |
11.2 |
53 |
ACBL-9 |
|
70 |
11.5 |
13.8 |
60 |
ACBL-10 |
|
95 |
12.8 |
15.6 |
68 |
ACBL-11 |
|
120 |
14.8 |
17.8 |
75 |
ACBL-12 |
|
150 |
16.0 |
19.6 |
83 |
ACBL-13 |
|
185 |
18.0 |
22.0 |
90 |
ACBL-14 |
|
225 |
20.0 |
24.0 |
98 |
ACBL-20 |
|
240 |
22.0 |
26.0 |
98 |
ACBL-15 |
|
300 |
24.0 |
28.7 |
113 |
ACBL-16 |
|
400 |
28.0 |
33.2 |
135 |
ACBL-17 |
|
500 |
30.0 |
36.0 |
143 |
ACBL-18 |
|
630 |
35.0 |
41.5 |
158 |
ACBL-19 |
|
800 |
39.0 |
46.3 |
180 |
ACBL-21 |
|
1000 |
43.0 |
53.8 |
225 |
ACBL-22 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
Recommended to use suitable crimping tools to perfect Joint.
