Aluminium Tubular Cable Lug
Double Hole Long Barrel
|

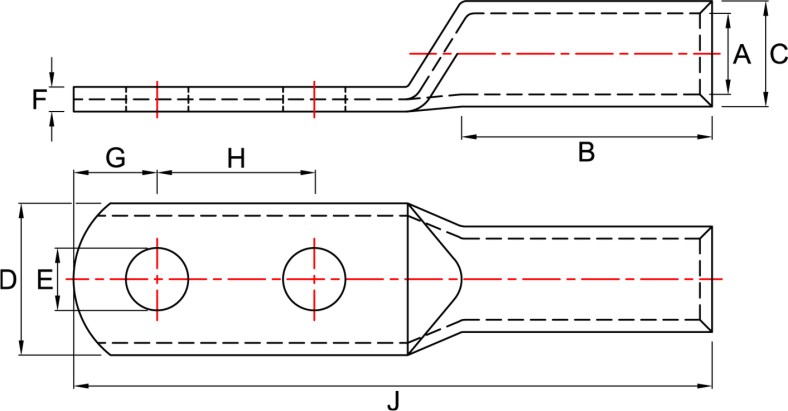

Dimensions in mm |
||||||||||
|
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Holes Center Distance |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
||
|
25 |
8.2 |
7.0 |
9.7 |
13.7 |
2.7 |
24 |
20.0 |
10 |
72 |
AALS-694 |
|
35 |
8.2 |
8.0 |
10.8 |
15.4 |
2.8 |
27 |
25.4 |
11 |
82 |
AALS-695 |
|
50 |
10.2 |
9.3 |
13.0 |
18.3 |
3.7 |
33 |
25.4 |
11 |
90 |
AALS-696 |
|
70 |
12.7 |
11.3 |
15.5 |
22.6 |
4.4 |
39 |
25.4 |
13 |
98 |
AALS-697 |
|
95 |
12.7 |
13.3 |
17.4 |
24.8 |
4.2 |
42 |
25.4 |
14 |
103 |
AALS-698 |
|
120 |
12.7 |
14.7 |
19.6 |
28.0 |
4.6 |
48 |
32.0 |
15 |
121 |
AALS-699 |
|
150 |
12.7 |
16.4 |
21.5 |
30.8 |
5.0 |
51 |
32.0 |
17 |
130 |
AALS-700 |
|
185 |
12.7 |
18.4 |
24.0 |
34.5 |
5.5 |
54 |
32.0 |
18 |
135 |
AALS-701 |
|
240 |
16.2 |
21.0 |
28.0 |
40.0 |
6.6 |
66 |
40.0 |
22 |
165 |
AALS-702 |
|
300 |
16.2 |
23.8 |
31.0 |
45.0 |
7.0 |
70 |
40.0 |
27 |
179 |
AALS-703 |
|
400 |
20.3 |
26.8 |
35.5 |
50.8 |
8.5 |
84 |
50.0 |
30 |
210 |
AALS-704 |
|
500 |
20.3 |
29.9 |
41.0 |
58.8 |
10.0 |
90 |
50.0 |
32 |
220 |
AALS-705 |
|
630 |
20.3 |
34.9 |
46.0 |
65.8 |
10.0 |
104 |
50.0 |
34 |
240 |
AALS-706 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
