Cu. Lug Nishad Type

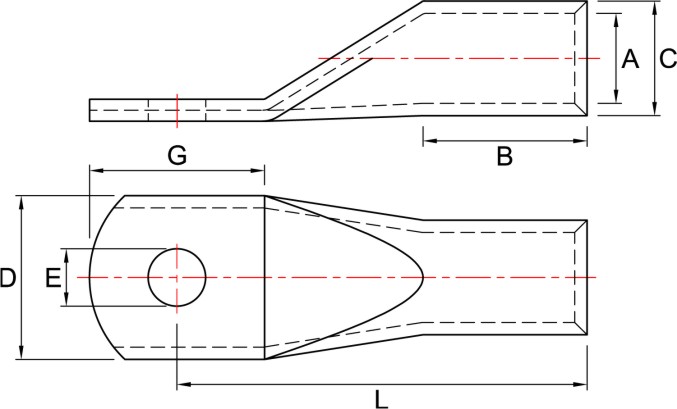

Features : With or Without Inspection Hole
|
Dimensions in mm |
||||||||
|
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm length |
Barrel Length |
Center Hole Distance from Barrel End |
ASCON CAT.NO. |
|
E |
A |
C |
D |
G |
B |
L |
||
|
6 |
5.2 |
3.8 |
5.5 |
10 |
14 |
9 |
28 |
ACUS-N-6-5 |
|
6.2 |
3.8 |
5.5 |
10 |
14 |
9 |
28 |
ACUS-N-6-6 |
|
|
10 |
5.2 |
4.5 |
6.2 |
11 |
15 |
9 |
28 |
ACUS-N-10-5 |
|
6.2 |
4.5 |
6.2 |
11 |
15 |
9 |
28 |
ACUS-N-10-6 |
|
|
10.5 |
4.5 |
6.2 |
16 |
25 |
12 |
43 |
ACUS-N-10-10 |
|
|
16
|
6.2 |
5.3 |
7.1 |
12 |
16 |
12 |
36 |
ACUS-N-16-6 |
|
8.2 |
5.3 |
7.1 |
12 |
16 |
12 |
36 |
ACUS-N-16-8 |
|
|
10.5 |
5.3 |
7.1 |
16 |
24 |
12 |
43 |
ACUS-N-16-10 |
|
|
13.0 |
5.3 |
7.1 |
16 |
24 |
12 |
43 |
ACUS-N-16-12 |
|
|
25 |
6.2 |
6.8 |
8.8 |
13 |
16 |
12 |
37 |
ACUS-N-25-6 |
|
8.2 |
6.8 |
8.8 |
13 |
16 |
12 |
37 |
ACUS-N-25-8 |
|
|
10.5 |
6.8 |
8.8 |
16 |
25 |
12 |
43 |
ACUS-N-25-10 |
|
|
13.0 |
6.8 |
8.8 |
18 |
25 |
12 |
43 |
ACUS-N-25-12 |
|
|
35 |
6.2 |
8.2 |
10.6 |
15 |
20 |
18 |
43 |
ACUS-N-35-6 |
|
8.2 |
8.2 |
10.6 |
15 |
20 |
18 |
43 |
ACUS-N-35-8 |
|
|
10.5 |
8.2 |
10.6 |
17 |
20 |
18 |
43 |
ACUS-N-35-10 |
|
|
13.0 |
8.2 |
10.6 |
17 |
26 |
18 |
50 |
ACUS-N-35-12 |
|
|
50 |
6.2 |
9.5 |
12.4 |
18 |
23 |
16 |
49 |
ACUS-N-50-6 |
|
8.2 |
9.5 |
12.4 |
18 |
23 |
16 |
49 |
ACUS-N-50-8 |
|
|
10.2 |
9.5 |
12.4 |
18 |
23 |
16 |
49 |
ACUS-N-50-10 |
|
|
13.0 |
9.5 |
12.4 |
18 |
23 |
16 |
49 |
ACUS-N-50-12 |
|
|
70 |
8.2 |
11.2 |
14.7 |
21 |
25 |
20 |
55 |
ACUS-N-70-8 |
|
10.5 |
11.2 |
14.7 |
21 |
25 |
20 |
55 |
ACUS-N-70-10 |
|
|
13.0 |
11.2 |
14.7 |
21 |
25 |
20 |
55 |
ACUS-N-70-12 |
|
|
14.0 |
11.2 |
14.7 |
21 |
25 |
20 |
55 |
ACUS-N-70-14 |
|
|
95 |
10.5 |
13.5 |
17.4 |
25 |
27 |
23 |
62 |
ACUS-N-95-10 |
|
13.0 |
13.5 |
17.4 |
25 |
27 |
23 |
62 |
ACUS-N-95-12 |
|
|
14.0 |
13.5 |
17.4 |
25 |
27 |
23 |
62 |
ACUS-N-95-14 |
|
|
17.0 |
13.5 |
17.4 |
25 |
33 |
23 |
68 |
ACUS-N-95-16 |
|
|
120 |
10.5 |
15.0 |
19.4 |
28 |
28 |
28 |
72 |
ACUS-N-120-10 |
|
13.0 |
15.0 |
19.4 |
28 |
28 |
28 |
72 |
ACUS-N-120-12 |
|
|
14.0 |
15.0 |
19.4 |
28 |
28 |
28 |
72 |
ACUS-N-120-14 |
|
|
17.0 |
15.0 |
19.4 |
28 |
28 |
28 |
72 |
ACUS-N-120-16 |
|
|
21.0 |
15.0 |
19.4 |
28 |
33 |
28 |
77 |
ACUS-N-120-20 |
|
|
150 |
10.5 |
16.5 |
21.0 |
30 |
32 |
30 |
75 |
ACUS-N-150-10 |
|
13.0 |
16.5 |
21.0 |
30 |
32 |
30 |
75 |
ACUS-N-150-12 |
|
|
17.0 |
16.5 |
21.0 |
30 |
32 |
30 |
75 |
ACUS-N-150-16 |
|
|
21.0 |
16.5 |
21.0 |
30 |
32 |
30 |
75 |
ACUS-N-150-20 |
|
185 |
10.5 |
18.5 |
23.5 |
34 |
38 |
31 |
85 |
ACUS-N-185-10 |
|
13.0 |
18.5 |
23.5 |
34 |
38 |
31 |
85 |
ACUS-N-185-12 |
|
|
14.0 |
18.5 |
23.5 |
34 |
38 |
31 |
85 |
ACUS-N-185-14 |
|
|
17.0 |
18.5 |
23.5 |
34 |
38 |
31 |
85 |
ACUS-N-185-16 |
|
|
21.0 |
18.5 |
23.5 |
34 |
38 |
31 |
85 |
ACUS-N-185-20 |
|
|
240 |
13.0 |
21.0 |
26.5 |
38 |
43 |
35 |
95 |
ACUS-N-240-12 |
|
17.0 |
21.0 |
26.5 |
38 |
43 |
35 |
95 |
ACUS-N-240-16 |
|
|
21.0 |
21.0 |
26.5 |
38 |
43 |
35 |
95 |
ACUS-N-240-20 |
|
|
300 |
17.0 |
23.5 |
30.0 |
43 |
47 |
44 |
110 |
ACUS-N-300-16 |
|
21.0 |
23.5 |
30.0 |
43 |
47 |
44 |
110 |
ACUS-N-300-20 |
|
|
400 |
17.0 |
28.5 |
36.5 |
52 |
48 |
40 |
112 |
ACUS-N-400-16 |
|
21.0 |
28.5 |
36.5 |
52 |
48 |
40 |
112 |
ACUS-N-400-20 |
|
|
500 |
17.0 |
30.0 |
37.0 |
55 |
50 |
75 |
148 |
ACUS-N-500-16 |
|
21.0 |
30.0 |
37.0 |
55 |
50 |
75 |
148 |
ACUS-N-500-20 |
|
|
630 |
17.0 |
34.0 |
41.0 |
60 |
50 |
70 |
148 |
ACUS-N-630-16 |
|
21.0 |
34.0 |
41.0 |
60 |
50 |
70 |
148 |
ACUS-N-630-20 |
|
Recommended to use suitable crimping tools to perfect Joint.
