Cu. Lug Heavy Duty DIN 46235 Standard
Material : E-Copper
Surface Finish : Electro Tin Plated
|

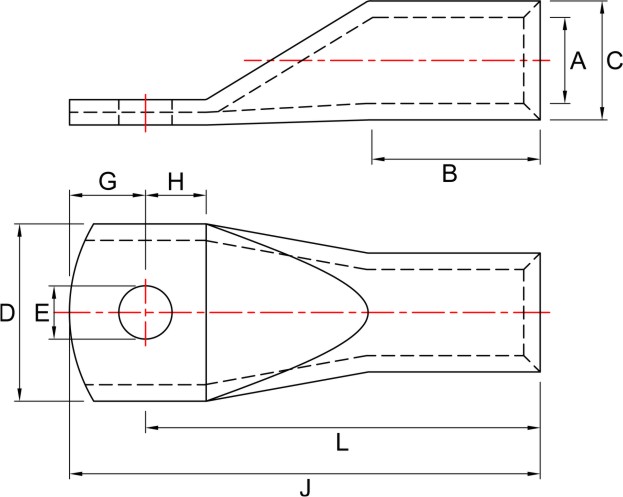

Dimensions in mm |
||||||||||
|
Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Barrel Length |
Stud Center from Barrel End |
Stud Center Distance from Top |
Stud Center Distance from Barrel |
Palm Width |
Total Length |
ASCON CAT.NO. |
|
E |
A |
C |
B |
L |
G |
H |
D |
J |
||
|
6 |
5.3 |
3.8 |
5.5 |
10 |
24 |
9.0 |
6 |
8.5 |
33.0 |
ASDT-6-5 |
|
6.4 |
3.8 |
5.5 |
10 |
24 |
10.5 |
8 |
8.5 |
34.5 |
ASDT-6-6 |
|
|
10 |
5.3 |
4.5 |
6.0 |
10 |
27 |
9.0 |
6 |
9.0 |
36.0 |
ASDT-10-5 |
|
6.4 |
4.5 |
6.0 |
10 |
27 |
10.5 |
8 |
9.0 |
37.5 |
ASDT-10-6 |
|
|
16
|
6.4 |
5.5 |
8.5 |
20 |
36 |
10.5 |
8 |
13.0 |
46.5 |
ASDT-16-6 |
|
8.4 |
5.5 |
8.5 |
20 |
36 |
13.0 |
10 |
13.0 |
49.0 |
ASDT-16-8 |
|
|
10.5 |
5.5 |
8.5 |
20 |
36 |
15.0 |
12 |
17.0 |
51.0 |
ASDT-16-10 |
|
|
25
|
6.4 |
7.0 |
10.0 |
20 |
38 |
10.5 |
8 |
14.0 |
48.5 |
ASDT-25-6 |
|
8.4 |
7.0 |
10.0 |
20 |
38 |
13.0 |
10 |
16.0 |
51.0 |
ASDT-25-8 |
|
|
10.5 |
7.0 |
10.0 |
20 |
38 |
15.0 |
12 |
17.0 |
53.0 |
ASDT-25-10 |
|
|
13.0 |
7.0 |
10.0 |
20 |
38 |
16.0 |
13 |
19.0 |
54.0 |
ASDT-25-13 |
|
|
35
|
8.4 |
8.2 |
12.5 |
20 |
42 |
13.0 |
10 |
17.0 |
55.0 |
ASDT-35-8 |
|
10.5 |
8.2 |
12.5 |
20 |
42 |
15.0 |
12 |
19.0 |
57.0 |
ASDT-35-10 |
|
|
13.0 |
8.2 |
12.5 |
20 |
42 |
16.0 |
13 |
21.0 |
58.0 |
ASDT-35-13 |
|
|
50 |
8.4 |
10.0 |
14.5 |
28 |
52 |
13.0 |
10 |
20.0 |
65.0 |
ASDT-50-8 |
|
10.5 |
10.0 |
14.5 |
28 |
52 |
15.0 |
12 |
22.0 |
67.0 |
ASDT-50-10 |
|
|
13.0 |
10.0 |
14.5 |
28 |
52 |
16.0 |
13 |
24.0 |
68.0 |
ASDT-50-13 |
|
|
17.0 |
10.0 |
14.5 |
28 |
52 |
19.0 |
16 |
28.0 |
71.0 |
ASDT-50-17 |
|
|
70
|
8.4 |
11.5 |
16.5 |
28 |
55 |
13.0 |
10 |
24.0 |
68.0 |
ASDT-70-8 |
|
10.5 |
11.5 |
16.5 |
28 |
55 |
15.0 |
12 |
24.0 |
70.0 |
ASDT-70-10 |
|
|
13.0 |
11.5 |
16.5 |
28 |
55 |
16.0 |
13 |
24.0 |
71.0 |
ASDT-70-13 |
|
|
17.0 |
11.5 |
16.5 |
28 |
55 |
19.0 |
16 |
30.0 |
74.0 |
ASDT-70-17 |
|
|
95 |
10.5 |
13.5 |
19.0 |
35 |
65 |
15.0 |
12 |
28.0 |
80.0 |
ASDT-95-10 |
|
13.0 |
13.5 |
19.0 |
35 |
65 |
16.0 |
13 |
28.0 |
81.0 |
ASDT-95-13 |
|
|
17.0 |
13.5 |
19.0 |
35 |
65 |
19.0 |
16 |
32.0 |
84.0 |
ASDT-95-17 |
|
|
120
|
10.5 |
15.5 |
21.0 |
35 |
70 |
15.0 |
12 |
32.0 |
85.0 |
ASDT-120-10 |
|
13.0 |
15.5 |
21.0 |
35 |
70 |
16.0 |
13 |
32.0 |
86.0 |
ASDT-120-13 |
|
|
17.0 |
15.5 |
21.0 |
35 |
70 |
19.0 |
16 |
32.0 |
89.0 |
ASDT-120-17 |
|
|
21.0 |
15.5 |
21.0 |
35 |
70 |
22.0 |
20 |
38.0 |
92.0 |
ASDT-120-21 |
|
|
150
|
10.5 |
17.0 |
23.5 |
35 |
78 |
15.0 |
12 |
34.0 |
93.0 |
ASDT-150-10 |
|
13.0 |
17.0 |
23.5 |
35 |
78 |
16.0 |
13 |
34.0 |
94.0 |
ASDT-150-13 |
|
|
17.0 |
17.0 |
23.5 |
35 |
78 |
19.0 |
16 |
34.0 |
97.0 |
ASDT-150-17 |
|
|
21.0 |
17.0 |
23.5 |
35 |
78 |
22.0 |
20 |
40.0 |
100.0 |
ASDT-150-21 |
|
|
185
|
10.5 |
19.0 |
25.5 |
40 |
82 |
15.0 |
12 |
40.0 |
97.0 |
ASDT-185-10 |
|
13.0 |
19.0 |
25.5 |
40 |
82 |
16.0 |
13 |
40.0 |
98.0 |
ASDT-185-13 |
|
|
17.0 |
19.0 |
25.5 |
40 |
82 |
19.0 |
16 |
40.0 |
101.0 |
ASDT-185-17 |
|
|
21.0 |
19.0 |
25.5 |
40 |
82 |
22.0 |
20 |
40.0 |
104.0 |
ASDT-185-21 |
|
|
240
|
13.0 |
21.5 |
29.0 |
40 |
92 |
16.0 |
13 |
42.0 |
108.0 |
ASDT-240-13 |
|
17.0 |
21.5 |
29.0 |
40 |
92 |
19.0 |
16 |
42.0 |
111.0 |
ASDT-240-17 |
|
|
21.0 |
21.5 |
29.0 |
40 |
92 |
22.0 |
20 |
45.0 |
114.0 |
ASDT-240-21 |
|
|
300 |
17.0 |
24.5 |
32.0 |
50 |
100 |
19.0 |
16 |
48.0 |
119.0 |
ASDT-300-17 |
|
21.0 |
24.5 |
32.0 |
50 |
100 |
22.0 |
20 |
48.0 |
122.0 |
ASDT-300-21 |
|
|
400 |
17.0 |
27.5 |
38.5 |
70 |
115 |
25.0 |
16 |
55.0 |
140.0 |
ASDT-400-17 |
|
21.0 |
27.5 |
38.5 |
70 |
115 |
25.0 |
20 |
55.0 |
140.0 |
ASDT-400-21 |
|
|
500 |
21.0 |
31.0 |
42.0 |
70 |
125 |
25.0 |
20 |
60.0 |
150.0 |
ASDT-500-21 |
|
625 |
21.0 |
34.5 |
44.0 |
80 |
135 |
25.0 |
20 |
60.0 |
160.0 |
ASDT-625-21 |
|
800 |
21.0 |
40.0 |
52.0 |
100 |
165 |
25.0 |
20 |
75.0 |
190.0 |
ASDT-800-21 |
|
1000 |
21.0 |
44.0 |
58.0 |
100 |
165 |
25.0 |
20 |
85.0 |
190.0 |
ASDT-1000-21 |
Recommended to use suitable crimping tools to perfect Joint.
