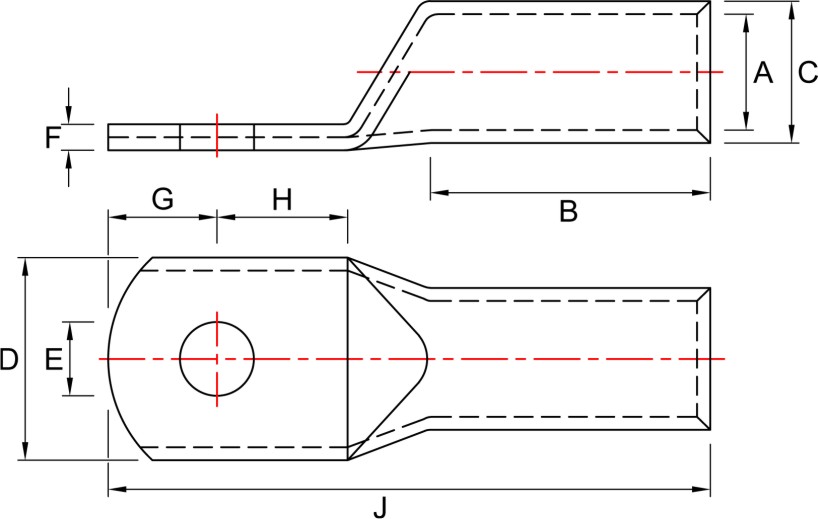

Dimensions in mm
Cable Size mm²	Stud Hole Size	Barrel ID	Barrel OD	Palm Width	Palm Thickness	Barrel Length	Stud Center Distance from Barrel	Stud Center Distance from Top	Total Length	ASCON CAT. NO.
Cable Size mm²	E	A	C	D	F	B	H	G	J	ASCON CAT. NO.
25	8.2	7	9	13	2.0	16	12	8	41	ACUS-282
35	8.2	8	10.6	15	2.6	20	14	9	48	ACUS-283
50	8.2	9.2	12.2	17	3.0	26	16	10	59	ACUS-284
70	10.2	11.5	15	20	3.5	28	19	12	66	ACUS-285
95	12.7	12.8	17	24	4.2	32	20	12	74	ACUS-286
120	12.7	14.8	19.6	28	4.8	35	23	14	82	ACUS-287
150	12.7	16	21.2	30	5.2	38	24	14	86	ACUS-288
185	12.7	18	24	34	6.0	43	23	17	95	ACUS-289
240	16.2	22	28	40	6.0	50	30	20	112	ACUS-290
300	16.2	23.5	30	43	6.5	54	23	23	115	ACUS-291
400	16.2	26.8	34.8	50	8.0	66	26	26	136	ACUS-292
500	20.4	30	39	56	9.0	72	28	28	148	ACUS-293
630	20.4	35	45	65	10	84	33	33	172	ACUS-294
800	BLK	39	50.6	73	11.6	117	40	35	209	ACUS-295
1000	BLK	43	56.2	81	13.2	135	45	45	245	ACUS-296

*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.

Cu. Lug Heavy duty Long Barrel Type
