Cu. Lug Soldering Amp. Type
As Per Table 2A of BS-91 (1954) Revised 1960
Commercial Series

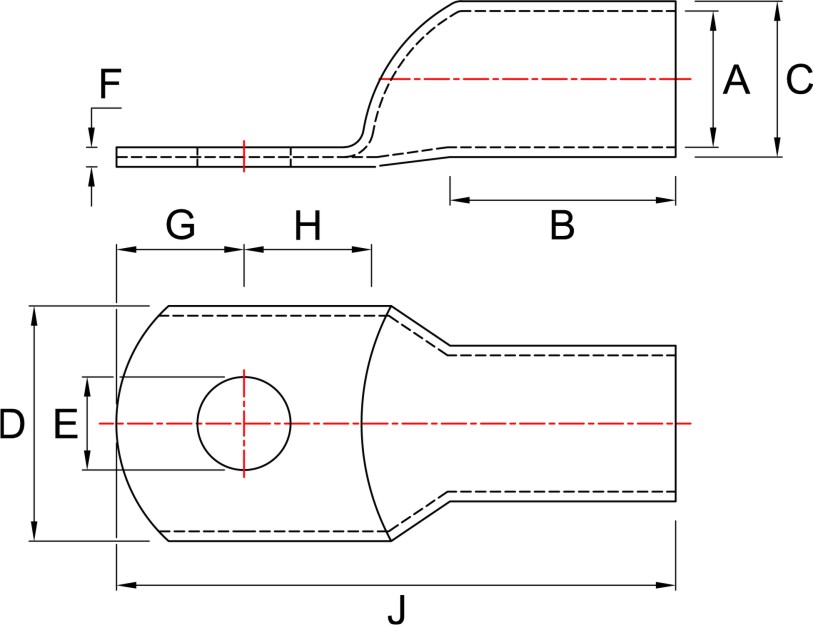

Dimensions in mm |
|||||||||||
AMPS |
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
|||
|
15 |
7/1.06 |
3.2 |
3.9 |
4.8 |
7 |
0.9 |
7 |
6 |
4 |
19 |
AS-201 |
|
30 |
7/1.4 |
5.1 |
5.2 |
6.3 |
9 |
1.1 |
9 |
6 |
5 |
23 |
AS-202 |
|
60 |
7/2.24 |
6.4 |
8.1 |
9.5 |
14 |
1.4 |
14 |
9 |
9 |
36 |
AS-203 |
|
100 |
19/1.8 |
9.5 |
10.9 |
12.7 |
19 |
1.8 |
19 |
11 |
11 |
49 |
AS-204 |
|
150 |
19/2.24 |
9.5 |
13.9 |
15.9 |
24 |
2.0 |
23 |
13 |
13 |
57 |
AS-205 |
|
200 |
19/2.5 |
12.7 |
16.6 |
19.0 |
28 |
2.4 |
27 |
14 |
14 |
66 |
AS-206 |
|
300 |
37/2.24 |
12.7 |
19.0 |
22.2 |
33 |
3.2 |
28 |
20 |
19 |
80 |
AS-207 |
|
400 |
37/2.5 |
15.9 |
22.2 |
25.4 |
38 |
3.2 |
32 |
21 |
21 |
89 |
AS-208 |
|
500 |
61/2.24 |
19.0 |
25.4 |
28.6 |
43 |
3.2 |
38 |
25 |
25 |
105 |
AS-209 |
|
600 |
61/2.5 |
19.0 |
27.8 |
31.8 |
47 |
4.0 |
44 |
27 |
27 |
115 |
AS-210 |
|
800 |
61/3.0 |
23.8 |
31.7 |
38.1 |
56 |
6.4 |
47 |
28 |
28 |
121 |
AS-211 |
|
1000 |
91/3.1 |
23.8 |
38.1 |
44.5 |
66 |
6.4 |
56 |
42 |
34 |
152 |
AS-212 |
|
1000 |
91/3.75 |
BLK |
50.0 |
57.3 |
85 |
7.3 |
62 |
46 |
36 |
164 |
AS-295 |
Medium Duty Series (As per Table 2A of BS-91 (1954) Revised -1960
Dimensions in mm |
||||||||||||
BSS Ref. |
AMPS |
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
||||
|
2E |
15 |
7/1.1 |
5.1 |
4.8 |
6.2 |
9 |
1.4 |
10 |
6 |
5 |
24 |
BSS-6 |
|
4EL |
30 |
7/1.6 |
7.1 |
6.4 |
8 |
12 |
1.6 |
13 |
10 |
6 |
33 |
BSS-7 |
|
7EL |
60 |
19/1.6 |
10.3 |
9.5 |
11.3 |
17 |
1.8 |
14 |
13 |
9 |
44 |
BSS-8 |
|
10EL |
100 |
19/2.1 |
11.9 |
11.9 |
13.9 |
21 |
2 |
19 |
14 |
13 |
55 |
BSS-9 |
|
11EL |
150 |
37/1.8 |
13.5 |
14.3 |
17.1 |
25 |
2.8 |
22 |
16 |
14 |
62 |
BSS-10 |
|
13EL |
200 |
37/2.1 |
13.5 |
16.7 |
19.9 |
29 |
3.2 |
29 |
21 |
17 |
78 |
BSS-11 |
|
14EL |
300 |
37/2.6 |
16.7 |
20.6 |
24.2 |
36 |
3.6 |
32 |
21 |
20 |
86 |
BSS-12 |
|
15EL |
400 |
61/2.3 |
16.7 |
23.8 |
27.8 |
41 |
4 |
38 |
24 |
24 |
100 |
BSS-13 |
|
17EL |
500 |
61/2.6 |
19.8 |
26.2 |
31.4 |
46 |
5.2 |
44 |
24 |
27 |
111 |
BSS-14 |
Heavy Duty BSS Series (As per Table 2 of BS-91 (1973)
Dimensions in mm |
||||||||||||
BSS Ref. Old |
New | Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
||||
|
|
1T |
6 |
5.5 |
4.4 |
6.0 |
9 |
1.6 |
10 |
6 |
5 |
24 |
BSS-15 |
|
|
2T |
16 |
6.6 |
6.0 |
8.0 |
11 |
2.0 |
13 |
7 |
6 |
31 |
BSS-16 |
|
|
5T |
25 |
9.0 |
7.6 |
10.0 |
14 |
2.4 |
13 |
12 |
10 |
41 |
BSS-17 |
|
|
6T |
35 |
9.0 |
9.6 |
12.0 |
17 |
2.4 |
16 |
12 |
10 |
46 |
BSS-18 |
|
10E |
7T |
50/70 |
11.0 |
12.0 |
16.6 |
23 |
4.6 |
19 |
14 |
13 |
55 |
BSS-23 |
|
11E |
9T |
95 |
14.0 |
14.3 |
19.5 |
28 |
5.2 |
22 |
16 |
14 |
62 |
BSS-24 |
|
13E |
10T |
120 |
14.0 |
16.7 |
22.5 |
32 |
5.8 |
29 |
20 |
18 |
78 |
BSS-25 |
|
14E |
11T |
150/185 |
14.0 |
20.6 |
27.8 |
40 |
7.2 |
32 |
21 |
20 |
86 |
BSS-26 |
|
15E |
13T |
240 |
18.0 |
23.8 |
31.0 |
45 |
7.2 |
38 |
24 |
24 |
100 |
BSS-27 |
|
17E |
14T |
300 |
18.0 |
26.2 |
34.2 |
49 |
8.0 |
44 |
24 |
27 |
111 |
BSS-28 |
|
18E |
15T |
400/500 |
22.0 |
31.7 |
40.9 |
59 |
9.2 |
48 |
25 |
30 |
121 |
BSS-29 |
|
20E |
19T |
625 |
26.0 |
36.5 |
46.1 |
67 |
9.6 |
56 |
29 |
34 |
139 |
BSS-30 |
Recommended to use suitable crimping tools to perfect Joint.
