Al. Reducer Pin Type Terminals
Compression Crimping Type for Aluminium Conductors
|

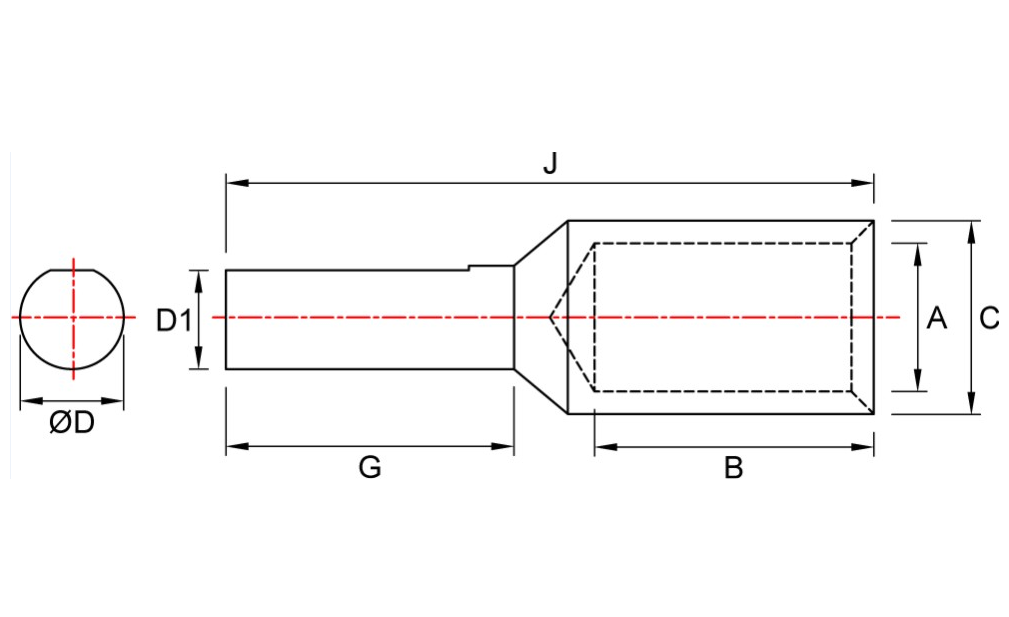

Dimensions in mm. |
||||||||
|
Cable Size mm2 |
Barrel ID |
Barrel OD |
Palm Width |
Nobe |
Barrel Length |
Pin Length |
Total Length |
ASCON CAT. NO. |
|
A |
C |
D |
D1 |
B |
G |
J |
||
|
4 |
2.9 |
5.5 |
3.8 |
3.3 |
7 |
10 |
21 |
ART-16 |
|
6 |
3.5 |
5.5 |
3.8 |
3.3 |
7 |
10 |
21 |
ART-18 |
|
10 |
4.4 |
7.4 |
3.8 |
3.3 |
9 |
10 |
23 |
ART-22 |
|
16 |
5.4 |
8.3 |
3.8 |
3.3 |
13 |
13 |
31 |
ART-2 |
|
25 |
7.0 |
10.0 |
7.5 |
6.5 |
16 |
20 |
41 |
ART-3 |
|
35 |
8.0 |
10.8 |
7.5 |
6.5 |
18 |
20 |
43 |
ART-4 |
|
50 |
9.3 |
13.0 |
7.5 |
6.5 |
22 |
20 |
47 |
ART-26 |
|
70 |
11.6 |
16.0 |
7.5 |
6.5 |
26 |
20 |
51 |
ART-27 |
|
95 |
12.9 |
17.1 |
11.5 |
10.5 |
28 |
25 |
59 |
ART-29 |
|
120 |
15.0 |
19.6 |
11.5 |
10.5 |
32 |
25 |
63 |
ART-33 |
|
150 |
16.5 |
21.5 |
11.5 |
10.5 |
34 |
32 |
72 |
ART-37 |
|
185 |
18.5 |
24.0 |
11.5 |
10.5 |
36 |
32 |
74 |
ART-38 |
|
240 |
22.0 |
28.6 |
15.6 |
14.0 |
44 |
32 |
84 |
ART-43 |
|
300 |
25.0 |
32.0 |
15.6 |
14.0 |
47 |
32 |
87 |
ART-47 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
Recommended to use suitable crimping tools to perfect Joint.
