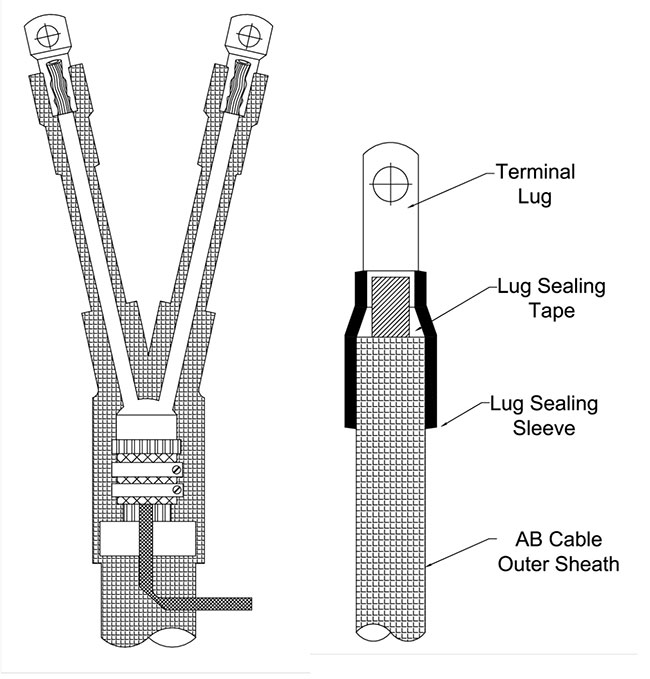

LT Termination for 1C/AB/3C XLPE/PVC Cables
suitable for Single Core/Aerial Bunch/3-Core for Low Voltage PVC/XLPE Cables up to 3.3 kV.
Kit Components:
- 1. H.S. Terminals Sleeve
- 2. Insulations Sleeve
- 3. H.S. Cable Breakout
- 4. Jubilee Clamp
- 5. Tinned Copper Braid
- 6. Black Mastic Sealant Tape
- 7. Terminal Lug
- 8. Cleaning Solvent/Tissue
- 9. Moping Cloth
- 10. Installation Instruction Manual
Electrical Performance:
Test |
1.1 kV |
3.3 kV |
AC Dry Withstand voltage (5 Minute) |
3.5 kV |
5 kV |
DC Withstand (15 Minutes) |
15 kV |
20 kV |
Selection Table:
Cable Size (mm2) |
Kit Code 1.1 kV |
4-16 |
AST-011 |
25-50 |
AST-012 |
70-150 |
AST-013 |
185-300 |
AST-014 |
400-500 |
AST-015 |
630-800 |
AST-016 |
1000 |
AST-017 |
Cable Size |
Kit Code 3.3 kV INDOOR |
Kit Code 3.3 kV OUTDOOR |
16-50 |
ASV-1136 |
ASV-1036 |
70-120 |
ASV-1137 |
ASV-1037 |
150-300 |
ASV-1138 |
ASV-1038 |
400-630 |
ASV-1139 |
ASV-1039 |
800-1000 |
ASV-1140 |
ASV-1040 |
Note: All kits are supplied with full kit contents for making LV Terminations.
* We reserve the right to make any technical changes or modify in content.
