HT Straight Through Joints for 1C/3C/AB XLPE/EPR/PVC Insulated Cables
suitable for
1-core/Aerial Bunched/3-core XLPE/EPR/PVC Insulated cables upto 66kV.

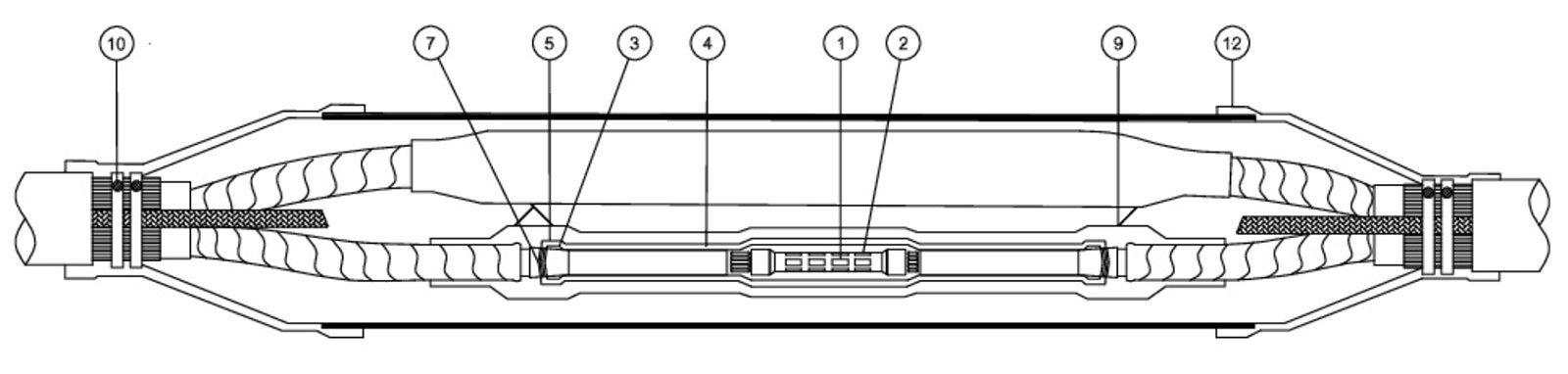

Kit Contents:
1. In line Connectors (Ferrules)
2. Stress Control Mastic
3. Heat Shrinkable Stress Control Sleeve (Black)
4. Heat Shrinkable Insulating (Red) Tubing
5. H.S. Screened Dual Wall Tubing (Alternatively separate Insulation & Conducting Tubings)
6. Stress Control Mastic (Grey/Yellow)
7. Red Mastic
8. Copper Woven Flexible Mesh Tape
9. Solder Tac (Alternatively Roll Spring)
10. Worm Drive Clips
11. Wraparound Joint Case (Alternatively GI Mesh Tape for mechanical protection A New Concept).
2. Stress Control Mastic
3. Heat Shrinkable Stress Control Sleeve (Black)
4. Heat Shrinkable Insulating (Red) Tubing
5. H.S. Screened Dual Wall Tubing (Alternatively separate Insulation & Conducting Tubings)
6. Stress Control Mastic (Grey/Yellow)
7. Red Mastic
8. Copper Woven Flexible Mesh Tape
9. Solder Tac (Alternatively Roll Spring)
10. Worm Drive Clips
11. Wraparound Joint Case (Alternatively GI Mesh Tape for mechanical protection A New Concept).
12. Heat Shrinkable Outer Jacketing Sleeve (Central 1No.+Side Sleeve 2 Nos.)
13. Tinned Copper Braid (Main Earthing)
14. Silicon Grease
15. Mastic Sealing Tape
16. Nylon String for cutting XLPE Insulation
17. Aloxite Emery Tape
18. PVC Adhesive Tape
19. Moping Cloth
20. Cleaning Solvent/Tissue
21. Installation Instruction Manual
13. Tinned Copper Braid (Main Earthing)
14. Silicon Grease
15. Mastic Sealing Tape
16. Nylon String for cutting XLPE Insulation
17. Aloxite Emery Tape
18. PVC Adhesive Tape
19. Moping Cloth
20. Cleaning Solvent/Tissue
21. Installation Instruction Manual
Electrical Performance:
Test Requirements |
12kV |
15-24kV |
36kV |
AC Withstand (1 Minute) |
35kV |
50kV |
75kV |
DC Withstand (30 Minutes) |
48kV |
96kV |
144 kV |
Discharge Extinction Voltage (<5Pc) |
12.7 kV (Min) |
25.4 kV (Min) |
38 kV (Min) |
Impulse withstand (Crest kV) |
75 kV (Min) |
125 kV |
170 kV (Min) |
Continuous Current Rating |
As per Cable |
As per Cable |
As per Cable |
Note: All kits are supplied with full kit content for making a straight through joint.
* We reserve the right to make any technical changes or modify in content.
