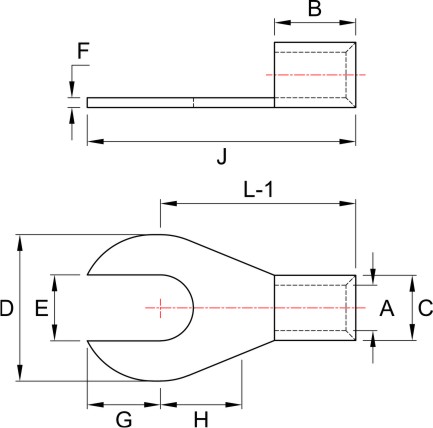

Ring Tongue fork Type (without Insulation)
.png)
.png)
|
Dimensions in mm |
|||||||||||
|
Cable Size mm2 |
E |
A |
C |
D |
F |
B |
H |
G |
L-1 |
J |
ASCON CAT. NO. |
|
1.5 |
3.1 |
1.6 |
3.2 |
6 |
0.8 |
5 |
4 |
3 |
11 |
14 |
7235 |
|
3.6 |
1.6 |
3.2 |
6 |
0.8 |
5 |
4 |
3 |
11 |
14 |
7240 |
|
|
3.1 |
1.6 |
3.2 |
6.8 |
0.8 |
5 |
4.6 |
3.4 |
9.6 |
13 |
7241 |
|
|
3.6 |
1.6 |
3.2 |
6.8 |
0.8 |
5 |
4.6 |
3.4 |
9.6 |
13 |
7244 |
|
|
4.1 |
1.6 |
3.2 |
7 |
0.8 |
5 |
5 |
3.5 |
11 |
14 |
7237 |
|
|
4.1 |
1.6 |
3.2 |
8 |
0.8 |
5 |
5 |
4 |
12 |
16 |
7236 |
|
|
5.1 |
1.6 |
3.2 |
10 |
0.8 |
5 |
6 |
5 |
13 |
18 |
7238 |
|
|
6.1 |
1.6 |
3.2 |
10 |
0.8 |
5 |
6 |
5 |
13 |
18 |
7861 |
|
|
2.5 |
3.1 |
2.3 |
3.9 |
6.5 |
0.8 |
5 |
3.5 |
3.2 |
9.5 |
12.7 |
7862 |
|
3.6 |
2.3 |
3.9 |
6.5 |
0.8 |
5 |
3.5 |
3.2 |
9.5 |
12.7 |
7863 |
|
|
4.1 |
2.3 |
3.9 |
8 |
0.8 |
5 |
5 |
4 |
12 |
16 |
7239 |
|
|
5.1 |
2.3 |
3.9 |
10 |
0.8 |
5 |
7 |
5 |
13 |
18 |
7242 |
|
|
6.1 |
2.3 |
3.9 |
10 |
0.8 |
5 |
7 |
5 |
13 |
18 |
7864 |
|
|
4-6 |
4.1 |
3.5 |
5.5 |
8 |
1.0 |
6 |
5 |
4 |
13 |
17 |
7243 |
|
4.1 |
3.5 |
5.5 |
10 |
1.0 |
6 |
5 |
5 |
14 |
19 |
7245 |
|
|
5.1 |
3.5 |
5.5 |
10 |
1.0 |
6 |
5 |
5 |
14 |
19 |
7246 |
|
|
5.1 |
3.5 |
5.5 |
10 |
1.0 |
6 |
7 |
6 |
16 |
22 |
7247 |
|
|
6.1 |
3.5 |
5.5 |
12 |
1.0 |
6 |
7 |
6 |
16 |
22 |
7248 |
|
|
10 |
4.1 |
4.3 |
6.3 |
10 |
1.0 |
6 |
7 |
5 |
17 |
22 |
7865 |
|
5.1 |
4.3 |
6.3 |
10 |
1.0 |
6 |
7 |
5 |
17 |
22 |
7866 |
|
|
6.1 |
4.3 |
6.3 |
12 |
1.0 |
6 |
7 |
6 |
17 |
23 |
7867 |
|
|
8.1 |
4.3 |
6.3 |
16 |
1.0 |
6 |
7 |
8 |
19 |
27 |
7868 |
|
|
16 |
5.1 |
5.6 |
8.0 |
10 |
1.2 |
10 |
6 |
5 |
19 |
24 |
7869 |
|
6.1 |
5.6 |
8.0 |
12 |
1.2 |
10 |
6 |
6 |
20 |
26 |
7870 |
|
|
8.1 |
5.6 |
8.0 |
16 |
1.2 |
10 |
8 |
8 |
22 |
30 |
7871 |
|
|
8.1 |
5.6 |
8.0 |
18 |
1.2 |
10 |
10 |
9 |
24 |
33 |
7872 |
|
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
Recommended to use suitable crimping tools to perfect Joint.
